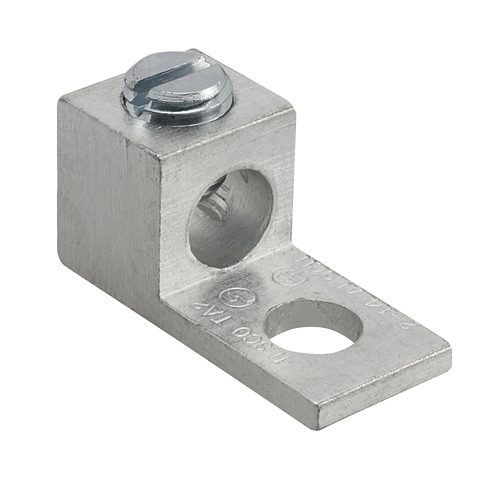

Image thumbnail 2
Email

Ilsco TA-2 Aluminum Mechanical Lug, Conductor Range 2-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # TA-2 | Codale Part # 4263635
$1.92 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2 Str - 14 Str and 10 Sol - 14 Sol, 1, 2 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Silver, 1 pole

Technical Information

Applications
For Terminating Connector
Bolt Size
1/4 in
Conductor Size
12-10 AWG (AL)/14-2 AWG (CU)
Conductor Type
Aluminum and Copper
Connection Type
Mechanical
Material
Aluminum
Mounting Hole Size
17/64 in
Number of Conductors
1,2
Number of Holes
1 Hole
Standard
UL Specifications: UL 486A-B,CSA File Number: LR-29601,UL File Number: E6207
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
TA:1 CONDUCTOR AL/CU
Voltage
35 Volt

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669887747
Color
Silver
Finish
Electro-Tin Plated
Product UPC
78366988774
Weight
0.047 lb

Dimensions

Height
0.55 Inch
Length
1.156 Inch
Width
0.5 in
