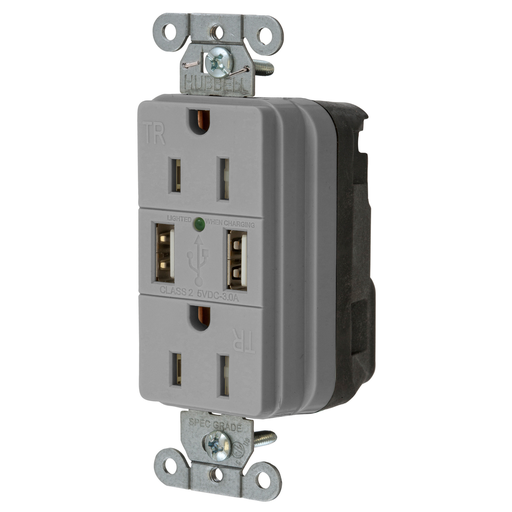

HWDK SNAP15USBGY USB CHGR SNAP 15A1

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP15USBGY | Codale Part # 4265471
$65.03/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Decorator, Duplex, Commercial/Industrial Grade, SNAPConnect®, Two USB type 2.0 ports 3 Amp 5 Volt, 15A 125V AC, 2-Pole 3-Wire Grounding, 5-15R, Gray

Technical Information

Amperage
15 Amp
Base Material
RTP,RTP
Conductor Size
14-10 AWG
Contact Material
Plated Copper
Current
15 Amp
Face Material
RTP,RTP
Flamability Class
UL 94V-2
Horsepower
0.5 hp
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Standard
CETLus,UL498
Style
Style Line Decorator
Tamper Resistant?
Yes
Type
SNAPConnect® USB Receptacle
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
883778305399
Color
Gray
Product Series
USB Charger
Product UPC
88377830539
Weight
0.2500 lb

Dimensions

Height
1.54 Inch
Length
3.28 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Two USB ports 3 Amp, 5V DC, type A, class 2.0
  • Tamper-Resistant decorator duplex receptacle
  • Green LED indicator to show USB power available
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
  • SNAPConnect®, Tamper Resistant
