BUR HSIC200FR 5/PK, 300-1750, HVYW

Manufacturer: Hubbell-Burndy | Catalog # HSIC200FR | Codale Part # 4266631
$136.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Heat Shrinkable End Cap, 2" ID Min.(Exp.), 0.63" ID Max.(Rec.), 250-1111 Flex, Cross Linked Polyolefin, Heavy Wall, Flame Retardant, Black, 600V.

Technical Information

Applications
For Used To Insulating Exposed Conductors In Energized Applications
Connection Type
Heavy Wall End Cap
Material
Polyolefin
Shrink Ratio
3 : 1
Type
HSIC-FR, Heavy Wall, Fire Retardant
Voltage
600 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HEAT SHRINK

General Product Info

12-Digit UPC
781810266533
Color
Black
Product UPC
78181026653
Weight
0.6400 lb

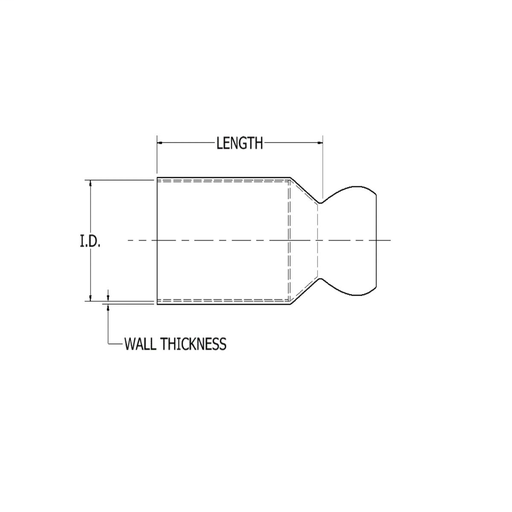

Dimensions

Height
2.05 Inch
Inside Diameter
1.37 IN
Length
3-1/2 Inch
Thickness
Wall: 05 IN Expanded, 0.16 IN +/- 20 PCT Recovery
Width
0.69 in

Certifications and Compliance

Country of Origin
Canada
CSA
No
Features
  • Type HSIC-FR, Heat Shrink Insulating End Cap Fire Retardant Is A Heavy Wall, Fire Retardant End Cap Made Of Cross-Linked Thermally Stabilized Black Polyolefin, Used To Insulate Exposed Conductors In Energized Applications, The 3:1 Shrink Ratio Offers Greater Range, Accommodating Copper Wire Sizes, 8 AWG Thru 2500+ KCMIL, Performs Effectively Over Lead, Aluminum, Steel, Polyethylene, EPR, And PVC Jacketed Materials, Blue Thermal Chromatic Lines Disappear Indicating Correct Installation Temperature And Provide Inspectability, I.D. Adhesive Provides Superior Moisture And Weather Resistant Characteristics, Minimum 28 Oxygen Index, UL94-VO Rated: Self-Extinguishing Flame Retardant Properties, 3:1 Shrink Ratio: Minimum Inventory Required, Thermal Chromatic Lines: Indicate Proper Installation, Low Shrink Temperature 150 DEG C: Only Requires Common Hot Air Gun To Apply, Meets Sealing Requirements: ANSI-C119.1, UL486D, Weather And Moisture Resistant, Inner Diameter Expanded: 2 IN Minimum, Inner Diameter After Recovery: 0.63 IN Maximum, Conductor Range: 300 - 1750 KCMIL (Code), 250 - 1111 KCMIL (Flex), Material: Cross-Linked Thermally Stabilized Black Polyolefin
