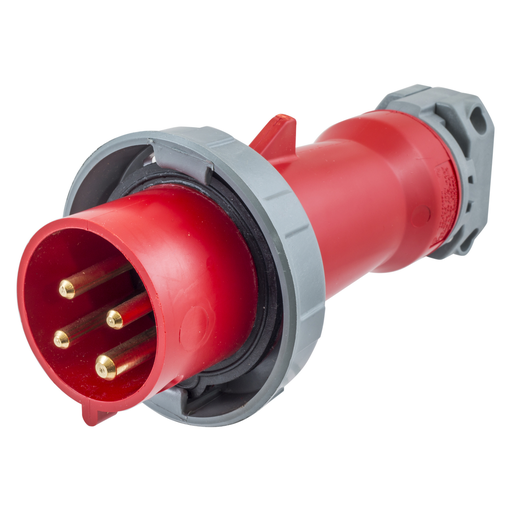

Product image for Hubbell HBLS460P7W PS, IEC, Plug, 3P4W, 60A 3P 480V, 4X/IP69K
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 5
Email

Hubbell HBLS460P7W PS, IEC, Plug, 3P4W, 60A 3P 480V, 4X/IP69K

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLS460P7W | Codale Part # 4267815
$626.22/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve, Plug, Switched, 60A 3-Phase 480V AC, 3-Pole 4-Wire, NEMA 4X/IP 69K

Technical Information

Amperage
60 Amp
Current
60 Amp
Number of Poles
3 Pole
Number of Wires
4 Wire
Style
IP69k NEMA 4X
Type
Clamshell Packaging
Voltage
480 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585479040
Color
Amber,Green,Red,White
Product Series
Advantage Switch,Rated
Product UPC
78358547904
Weight
2.3500 lb

Dimensions

Height
5.1 Inch
Length
11.8 Inch
Width
5.6 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Mates with existing installed base of IEC 60309-2 pin and sleeve devices
  • Approved as a diconnecting means for motor circuits and branch circuits
  • UL Type 4X, 12 and IP69k environmental ratings
  • Impact and corrosion-resistant PBT that is color coded by voltage
  • Unswitched ground and power indicating LED lights
