HWDK ATU1000CL OCCSENS,US,CLNG,LN,V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # ATU1000CL | Codale Part # 4269645
$392.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Control, H-MOSS, Occupancy Sensor, Adaptive Ultrasonic, Ceiling Mount, 120V AC, 1000Square Feet, With Relay

Technical Information

Amperage
20 Amp
Applications
Compatible with most LED and CFL
Current
20 Amp
Frequency
50/60 Hz
Material
ABS Plastic
Mounting Type
Ceiling Mount
Operating Temperature
11 degrees C
Sensing Range
1000 Square Feet
Standard
ASHRAE 90.1,CULus,UL244A
Style
Ceiling Mount
Type
Non-Reversing
Voltage
120/277 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
H-MOSS

General Product Info

12-Digit UPC
783585256917
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Ultrasonic
Product UPC
78358525691
Weight
0.5000 lb

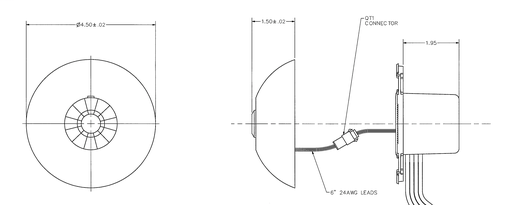

Dimensions

Height
3.4 Inch
Length
4-1/2 Inch
Width
5.1 in

Certifications and Compliance

Country of Origin
China
Features
  • Coverage 1000 sq. ft. (180°), line voltage sensor
  • Excellent minor motion detection
  • Self-contained power supply with high load relay
  • Directly mounts to 4\" octagon boxes, 2.125\" deep
  • Digital, crystal controlled ultrasonic transmitter and receiver for coverage in each direction for superior sensing of movement
  • Office White ABS enclosure blends with ceiling tile
  • Green LED indicates ultrasonic detection
