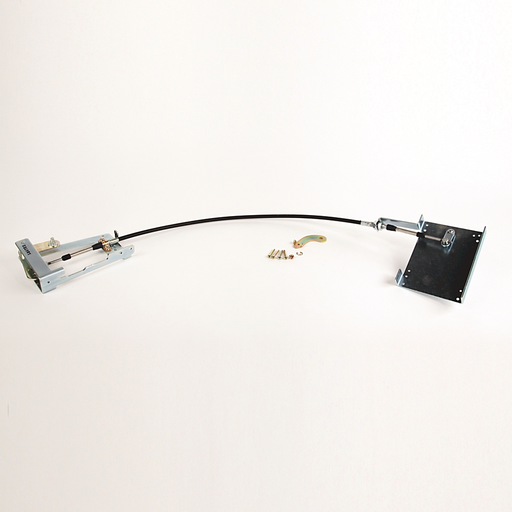

Allen Bradley 194R-FC30-1753-PB Fused Disconnect Switch

Manufacturer: Allen Bradley / Rockwell | Catalog # 194R-FC30-1753-PB | Codale Part # 4269648
$1,021.06/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
194R Disconnect Switch

Technical Information

Actuator
Standard Pistol Black Handle
Amperage
30 Amp
Applications
For Food Processing, Electrical Machinery, Material Handling Operations
Conductor Size
14-12 AWG
Fuse Type
Class CC, HRCI-MISC
Indicator
No Status Indication
Load Rating
5 hp at 250 VDC, 3 hp at 125 VDC, 20 hp at 600 VAC, 15 hp at 480 VDC, 7.5 hp at 240 VDC, 3 hp at 240 VAC, 2 hp at 120 VAC
Mounting Type
DIN Rail/Panel
Number of Poles
3 Pole
Operating Cycles
10000
Temperature Rating
-20 to 60 degrees C
Type
Fused, Enclosed
Voltage
600 VAC, 250 VDC
Wire Size
14-12 AWG

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
885630184418
Environmental Conditions
-40 to 65 C Storage, 90% at 20 C, 50% at 40 C Relative Humidity, 2000 m Altitude
Finish
Painted
Housing Material
Metal
Product UPC
88563018441
Weight
11.5100 lb
Features
  • Includes OSHA padlocking
  • Provides touch-safe design
