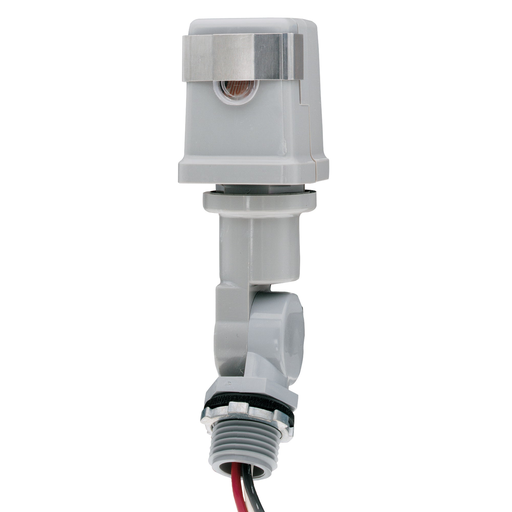

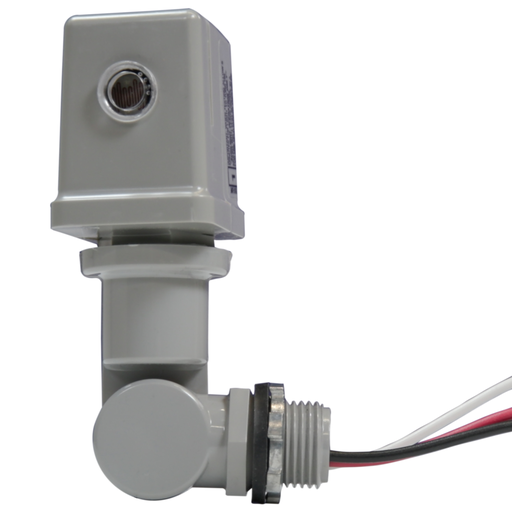

Intermatic K4221C 15A, 120V Stem and Swivel Mount Photocell

Manufacturer: Intermatic | Catalog # K4221C | Codale Part # 42710
$30.69/ea
ea
Log in or register to view your price, purchase history, and more!
91 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.

Technical Information

Amperage
15 Amp
Applications
Outdoor Lighting Control
Connection Type
Color Coded Lead
Frequency
50/60 Hz
Material
Thermoplastic
Max Operating Temperature
158 degrees F
Max Wire Size
18 AWG
Min Operating Temperature
-40 degrees C
Mounting Configuration
Stem and Swivel Mount
Mounting Type
Stem And Swivel Fixed Mount
Operating Temperature
158 degrees F
Power Consumption
2 W
Power Rating
1800 W
Sensor Type
Separate Light Sensor
Size
1-9/16 LENGTH X 1-9/16 WIDTH X 5-1/2 DEPTH IN, 4 LENGTH X 4 WIDTH X 14 DEPTH CM
Standard
CSA,Title CA 20 Listed,UL Recognized
Tc Connection
Color Coded Lead
Temperature Rating
70.0 degrees C
Type
Thermal
Voltage
120 Volt
Wire Length
152 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275002029
Color
Gray
Finish
Matte
Product Category
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product UPC
07827500202
Used With
Lighting, pathways
Weight
0.299 lb

Dimensions

Depth
1.563 Inch
Height
5 Inch
Warranty Length
2 yr
Width
1.563 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features

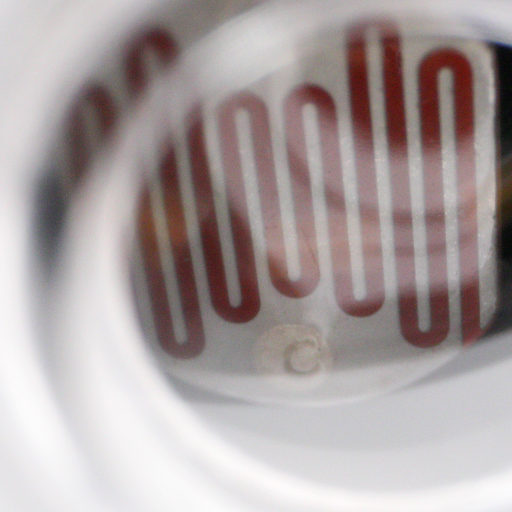

  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Delay feature prevents unwanted OFF switching
  • High strength, UV resistant plastic housing
  • Swivel with 1?2\"-14 NPSM threaded stem
  • Washer gasket and locking nut included
  • #18 AWG, 6\" wire leads
  • NA
