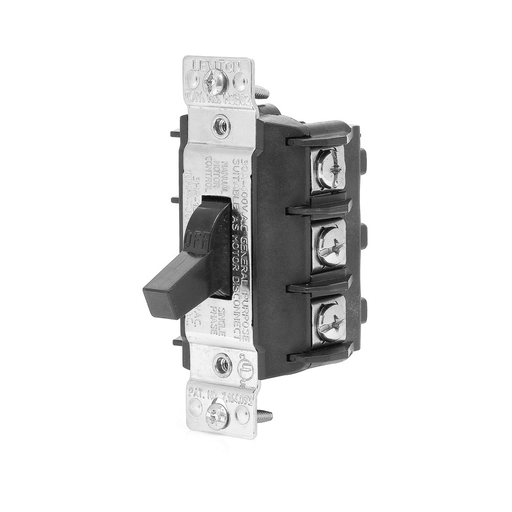

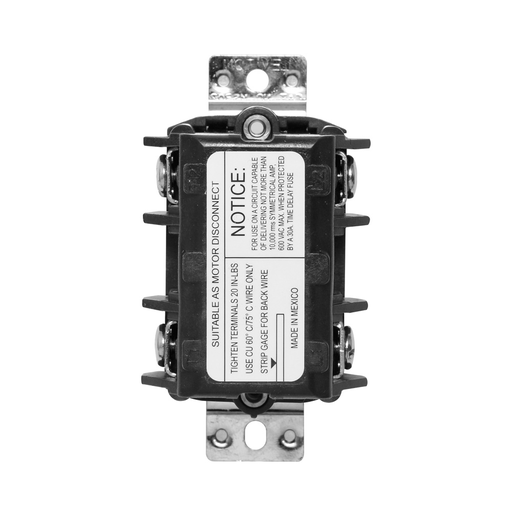

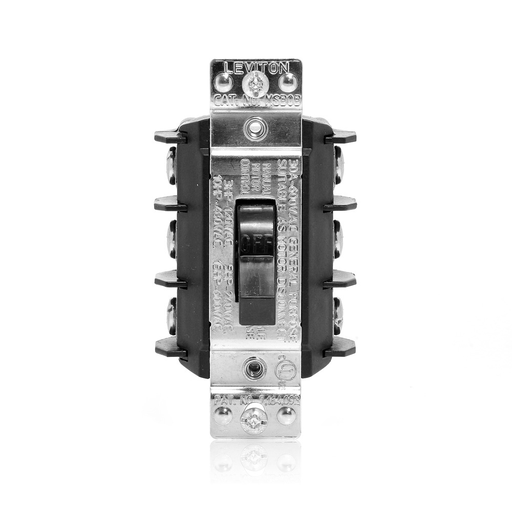

Product image for Leviton MS303-DS 600 Volt 30 Amp 3-Pole 3-Phase 20 Hp Black Thermoplastic Polyester Toggle AC Motor Starting Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Leviton MS303-DS 600 Volt 30 Amp 3-Pole 3-Phase 20 Hp Black Thermoplastic Polyester Toggle AC Motor Starting Switch

Manufacturer: Leviton | Catalog # MS303-DS | Codale Part # 4271153
$137.33/ea
ea
Log in or register to view your price, purchase history, and more!
49 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
30 Amp, 600 Volt, 3-Pole, Three-Phase Single Throw AC Manual Motor Controller, Suitable as Motor Disconnect, Standard Toggle, Industrial Grade, Non-Grounding, Back & Side Wiring - Black

Technical Information

Action
TPST
Actuator
Toggle
Amperage
30 Amp
Applications
Commercial
Base Material
Thermoplastic Polyester
Connection Type
Back Wired,Side Wired
Contact Configuration
TPST
Contact Material
Silver-Cadmium
Device Type
Toggle Switch
Dielectric
2200 V
Enclosure
WD-6
Face Material
Polyester
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Non-Grounding
NEMA
WD-1
Number of Poles
3 Pole
Operating Temperature
-40 to 60 degrees C
Size
3.75 H x 23 W x 2.46 D IN
Standard
ANSI C-73
Tc Connection
Back Wired;Side Wired
Temperature Rise
50 degrees C
Termination Type
Back Wire,Side Wire
Toggle Material
Thermoplastic Polyester
Torque
20 lb-in
Type
Standard
Voltage
600 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Motor Starter Switches

General Product Info

12-Digit UPC
078477374153
Color
Black
Environmental Conditions
Flammability (Rated V-0 per UL94)
Product UPC
07847737415
Weight
0.3600 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
