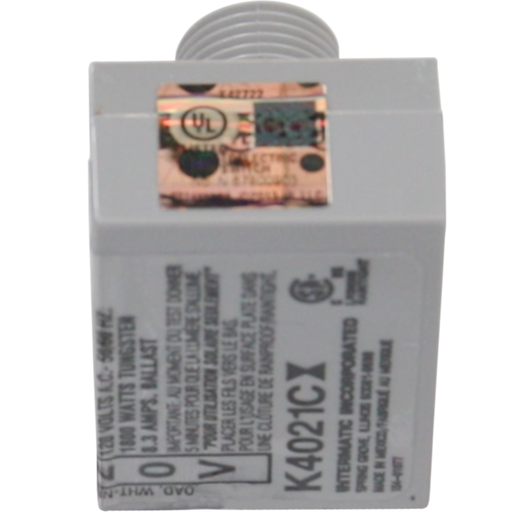

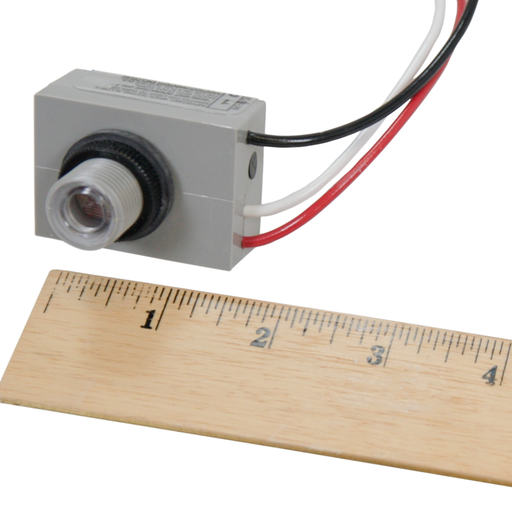

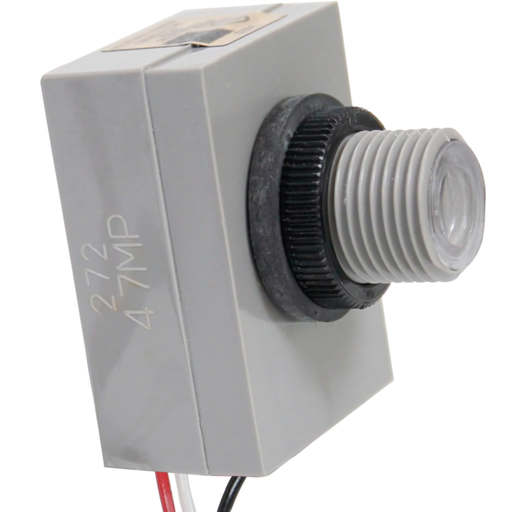

120V 50/60Hz 1800W "T" FIX MOUNT

Manufacturer: Intermatic | Catalog # K4021C | Codale Part # 42712
$24.13/ea
ea
Log in or register to view your price, purchase history, and more!
92 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.

Technical Information

Amperage
15000 mA
Applications
Outdoor Lighting Control
Connection Type
Color Coded Lead
Frequency
50/60 Hz
Material
Plastic
Max Operating Temperature
158 degrees F
Max Wire Size
18 AWG
Min Operating Temperature
-40 degrees C
Mounting Configuration
Fixed Mount
Mounting Type
Button Fixed Mount
Operating Temperature
158 degrees F
Power Consumption
1 W
Power Rating
1800 W
Sensor Type
Thermal photocontrol
Size
1-13/16 LENGTH X 1-5/16 WIDTH X 1-9/16 DEPTH IN, 4.6 LENGTH X 3.3 WIDTH X 4 DEPTH CM
Standard
CSA,California Title 24 Compliant,Title CA 20 Listed,UL Recognized
Tc Connection
Color Coded Lead
Temperature Rating
-40 to 70 degrees C
Type
Cuboid, Thermal, Light/Dark
Voltage
120 Volt
Wire Length
228.6 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275002005
Color
Gray
Finish
Plastic
Product Category
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product UPC
07827500200
Used With
Lighting, pathways
Weight
0.21 lb

Dimensions

Depth
0.811 Inch
Height
1.813 Inch
Warranty Length
2 yr
Width
0.938 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features

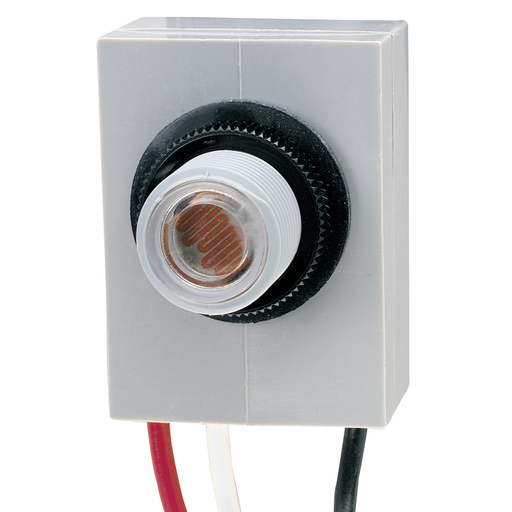

  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
  • Delay feature prevents unwanted OFF switching
  • 3/8\"-18 NPSM, 3/4\" long stem with locking nut and washer gasket
  • NA
