Burndy YH6C6CWCC Copper Compression H Tap, Tin Plated, Accommoding the following wire sizes - Run (Main): 6 AWG-10 AWG Class B,C, 6 AWG-10 AWG Class I, DLO, Tap 1: 6 AWG-14 AWG Class B,C, 6 AWG-14 AWG Class I, DLO, kitted with clear cover See sale drawing for metric wire size accommodates

Manufacturer: Hubbell-Burndy | Catalog # YH6C6CWCC | Codale Part # 4271216
$71.60/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Cu-code-H-Tap Crimpit, 6-10(6-10)(Main), 6-14(6-14)(Tap 1), Flame retardent

Technical Information

Applications
For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
Color Coding
Orange
Conductor Material
COPPER
Conductor Size
10-6 AWG
Connection Type
CLR COVER,H-TAP W
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Size
0.81 IN Height X 0.39 IN Width X 0.6 IN Length
Tap Size
6, 8, 12, 10, 14 AWG
Temperature Rating
194
Type
Compression Taps

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810436523
Finish
Tin-Plated,Tin-Plated
Product UPC
78181043652
Weight
0.0800 lb

Dimensions

Height
0.81 Inch
Length
0.6 Inch
Overall Length
15 mm
Width
0.39 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Uninsulated compression H-tap connector, tin-plated
  • Designs with more than one tap wire groove require installers to utilize a minimum of one Main (Run) and one Tap groove, other grooves can be left empty
  • 'Third Hand' is a string provided with the H-tap connector and is used to wrap the wire while being inserted into the run and tap grooves
  • H-tap connectors can be purchased separately or kitted with covers
  • YH is connector sold separately without cover
  • YH-WC is kitted H-tap connector and black cover

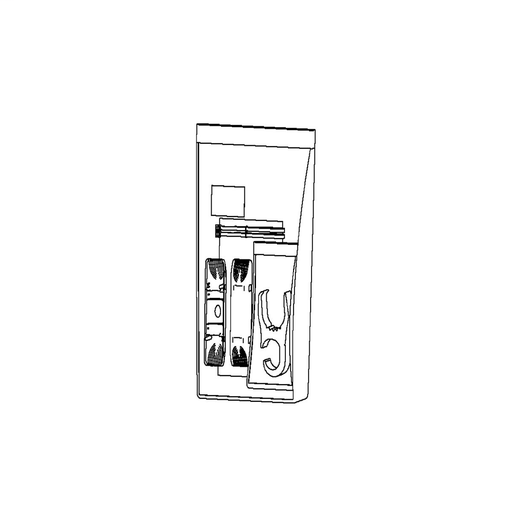

  • YH-WCC is kitted H-tap connector and clear cover
