Hubbell HBL3524C Locking Flanged-INLT, 20A 250V/10A 600V, 4P5W

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL3524C | Codale Part # 427166
$284.89/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 250V/10A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Nylon casing, Back wired, White

Technical Information

Amperage
10 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
12-10 AWG
Current
10 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminals
Type
Locking, Industrial Grade
Voltage
250/600 Volt
Wattage
12000 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585039930
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503993
Weight
0.3 lb

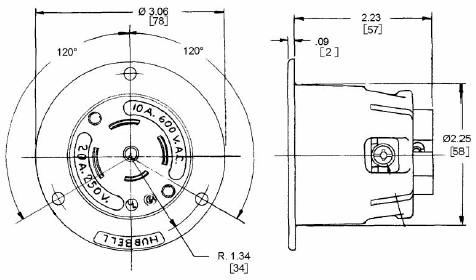

Dimensions

Height
2.23 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard Product
