Hubbell HBL3525C 20 Amp 250 VDC 10 Amp 600 VAC 4-Pole 5-Wire Locking Device Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL3525C | Codale Part # 427167
$497.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 250V DC/600V AC, 4-Pole 5-Wire Grounding, Non- NEMA, Screw Terminal, Nylon casing, Back wired, White

Technical Information

Amperage
10 Amp
Applications
Insulgrip
Conductor Size
12-10 AWG
Connection Type
Screw Terminal
Current
10 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Composite
Number of Conductors
5
Number of Phases
Multi Phase
Number of Poles
4-4 Pole
Number of Wires
5,5
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Standard, Single, 4-Pole
Voltage
250/600 Volt
Wattage
12000 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585039947
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503994
Weight
0.35 lb

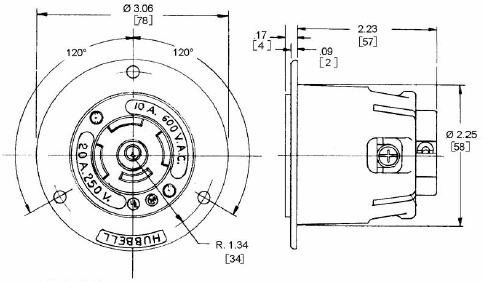

Dimensions

Height
2.23 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
