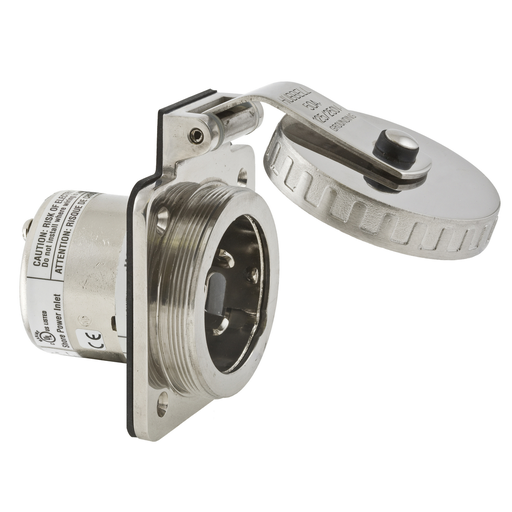

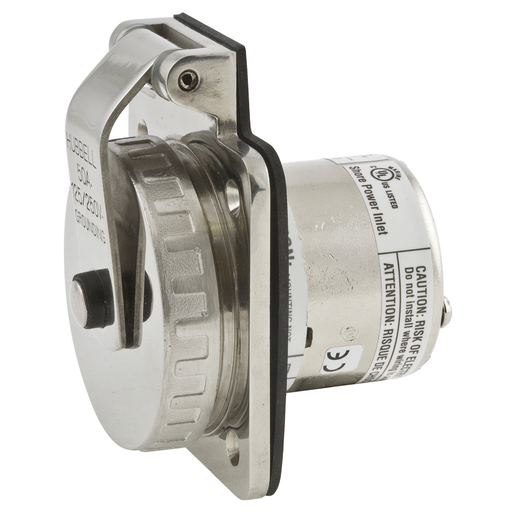

Hubbell HBL504SS 50 Amp 125/250 Volt 3-Pole 4-Wire Stainless Steel Power Inlet

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL504SS | Codale Part # 427172
$958.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Marine Grade, Shore Power Inlet, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Chrome Plated Brass

Technical Information

Amperage
50 Amp
Applications
Marine Wiring Devices
Conductor Size
6 AWG
Current
50 Amp
Dielectric Strength
Withstands 3000V Minimum in
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Rating
125/250 V
Size
Standard
Standard
UL
Tc Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Hull Mount Single
Voltage
125/250 Volt
Wattage
12500 Watt
Wire Count
4
Wire Size
6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585040585
Color
Silver
Environmental Conditions
Watertight
Product UPC
78358504058
Weight
1.85 lb

Dimensions

Height
3.8 Inch
Length
9.1 Inch
Width
5.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • New quick connect with backwards compatibility
  • Self-closing Friction Tight Cover
  • Neoprene gasket on underside of cover for sealing
  • Base and Cover are stainless steel for corrosion resistance
