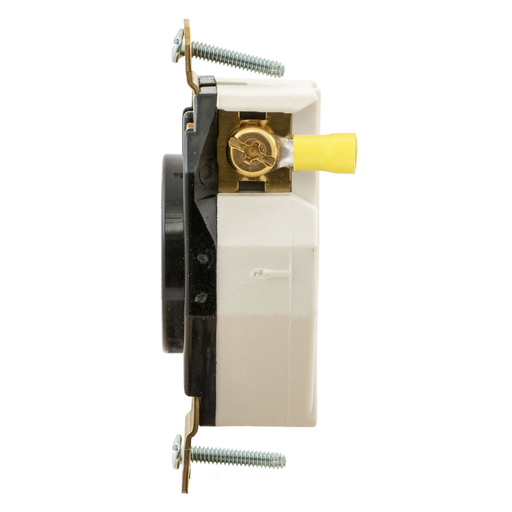

Product image for Hubbell HBL2310RTCAT#HBL2310, MOD RING T
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Hubbell HBL2310RTCAT#HBL2310, MOD RING T

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2310RT | Codale Part # 4272270
$54.48/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, NEMA L5-20R, Nylon face, Ring Terminal connection, Black.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Base Material
Plastic,RTP
Conductor Size
16-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
1 hp
Material
Nylon
NEMA
L5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.70 in x 1.23 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Ring Terminal
Type
Single Flush Receptacle
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585234038
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523403
Weight
0.40 lb

Dimensions

Height
1.23 Inch
Length
3.28 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
USA
Features
  • High-impact, abuse-resistant nylon face
  • Accepts ring terminals
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Accepts Ring Terminals
