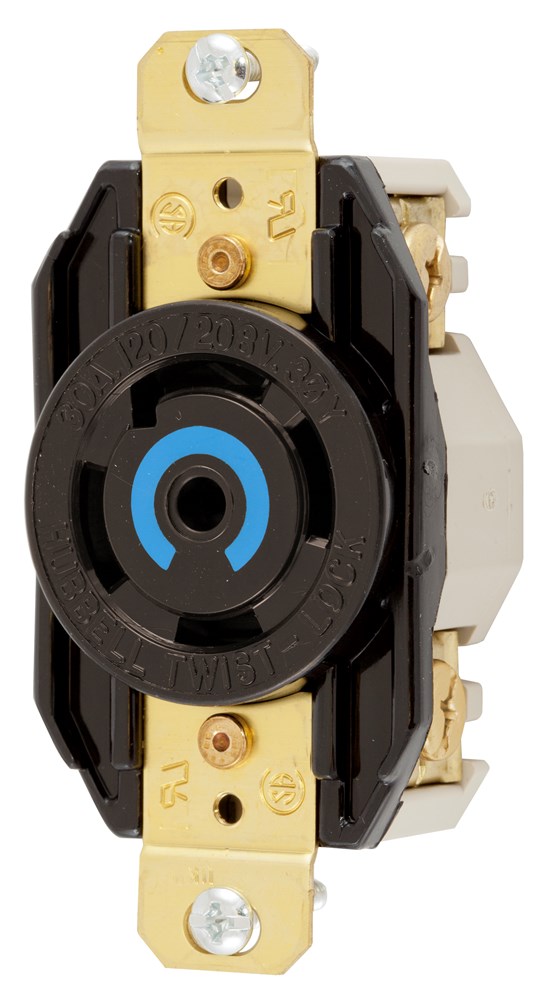

Product image for HWDK HBL2810RT CAT#HBL2810, MOD RIN
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HWDK HBL2810RT CAT#HBL2810, MOD RIN

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2810RT | Codale Part # 4272276
$125.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®,Single Flush Receptacle, 30A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-30R, Nylon face, ring terminal connection, Black

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Base Material
Nylon Polyester
Conductor Size
16-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
3 hp
Material
Nylon
NEMA
L21-30R
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Wires
5,5
Operating Temperature
-40 degrees C
Screw Material
#10-32 Bronze,Steel, Zinc plated
Size
3.28 in x 1.7 in x 1.23 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Ring Terminal
Type
Single Receptacle
Voltage
120/208 Volt
Wattage
6240 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585234571
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Housing Material
Impact Modified PBT
Product UPC
78358523457
Weight
0.35 lb

Dimensions

Height
1.23 Inch
Length
3.28 Inch
Width
1.7 in

Certifications and Compliance

Country of Origin
USA
Features
  • High-impact, abuse-resistant nylon face
  • Accepts ring terminals
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Accepts Ring Terminals
