Hubbell CR5352IGW 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Isolated Ground Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CR5352IGW | Codale Part # 427410
$30.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Hubbell-Pro Heavy Duty, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack, Isolated Ground.

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial
Grounding
Isolated
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585387185
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hubbell-PRO
Product UPC
78358538718
Weight
0.22 lb

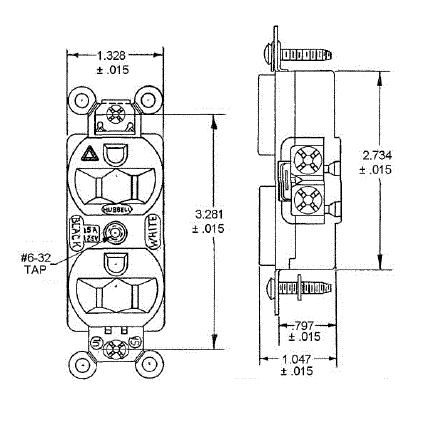

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Triangle marking on face indicates isolated ground
  • Slender/compact design
  • Finder Groove Face
  • Isolated Ground
