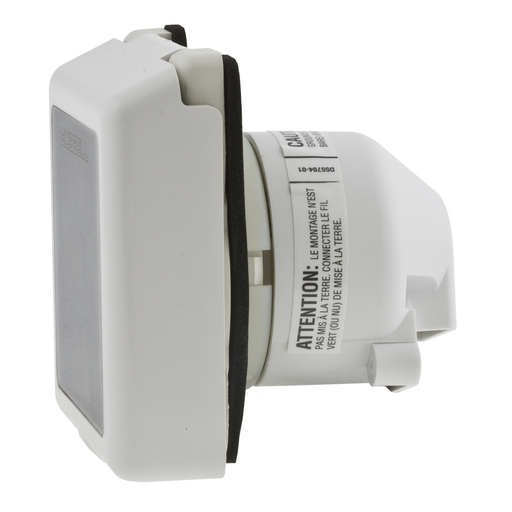

Hubbell HBL504NM 50 Amp 125/250 VAC 3-Pole 4-Wire Stylized Non-Metallic Shore Power Inlet

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL504NM | Codale Part # 427469
$581.50/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Marine Grade, Shore Power Inlet, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, White

Technical Information

Amperage
50 Amp
Applications
Marine Wiring Devices
Conductor Size
6 AWG
Current
50 Amp
Dielectric Strength
Withstands 3000V Minimum in
Material
Thermoplastic
Mounting Type
Screw, Hull, Wall
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Rating
125/250 V
Size
Standard Sized
Standard
UL
Tc Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Single, Standard Sized, Straight, Non-Metallic, Marine Grade
Voltage
125/250 Volt
Wattage
12500 Watt
Wire Count
4
Wire Size
6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585519470
Color
White
Environmental Conditions
Watertight
Product UPC
78358551947
Weight
0.9 lb

Dimensions

Height
3-1/2 Inch
Length
8.8 Inch
Width
5.1 in

Certifications and Compliance

Country of Origin
USA
Features
  • New quick connect with backwards compatibility
  • Self-closing Friction Tight Cover
  • Threaded Base for making a watertight seal
  • Rear enclosure is nickel plated for corrossion resistance
