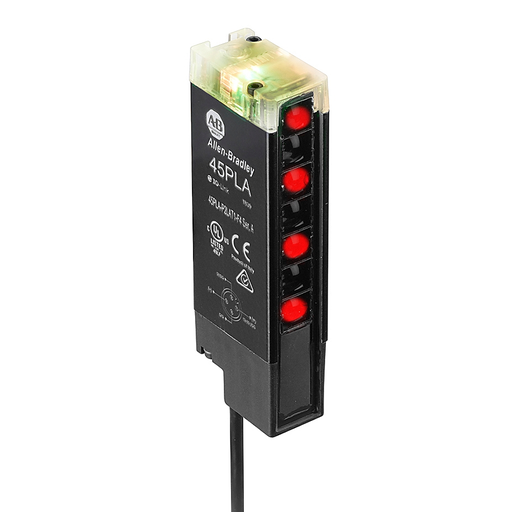

A-B 45PLA-P2LPT1-F4 Polarized Light

Manufacturer: Allen Bradley / Rockwell | Catalog # 45PLA-P2LPT1-F4 | Codale Part # 4275308
$296.80/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Photoelectric Sensor, Polarized Retroreflective,Visible Red, Teachable Light Operate or Dark Operate,Push-Pull PNP or NPN with IO-Link , Push Button Teach,4 m Range, 4-pin M12 QD on 150 mm Pigtail

Technical Information

Circuit Type
PNP/NPN
Connection Type
4-Pin DC Micro Quick Disconnect (M12)
Light Source
Visible Red LED
Response Time
2.5 Millisecond
Temperature Rating
-10 to 55 degrees C
Voltage
12-30 VDC

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
191326553759
Product UPC
19132655375
Weight
0.7700 lb
Features
  • Spans a 69 mm (2.7 in) wide detection area
  • Features highly visible 360 degrees indication LEDs which help ensure reliable operation and facilitate sensor troubleshooting
  • Detects objects as small as 6 mm (0.24 in)
  • Offers an IP67 rated enclosure
  • Offers embedded IO-Link communications enable access to enhanced diagnostic features such as:
  • Senses up to 4.5 m (14.76 ft)
  • Includes user Interface LEDs that can be programmed to operate in Bin Picking Mode where the operators can individually control the LED operation
Accessories
  • 889D-F4AC-5
