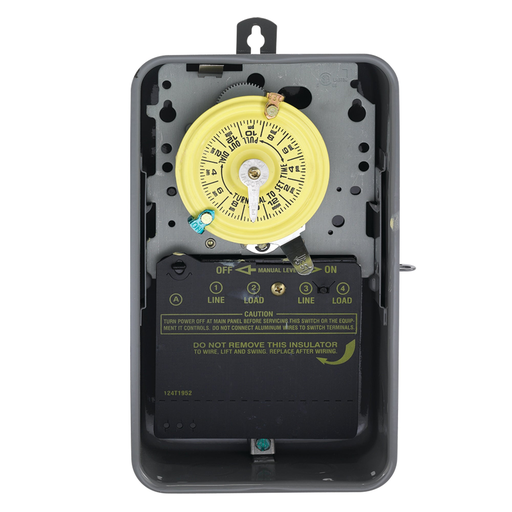

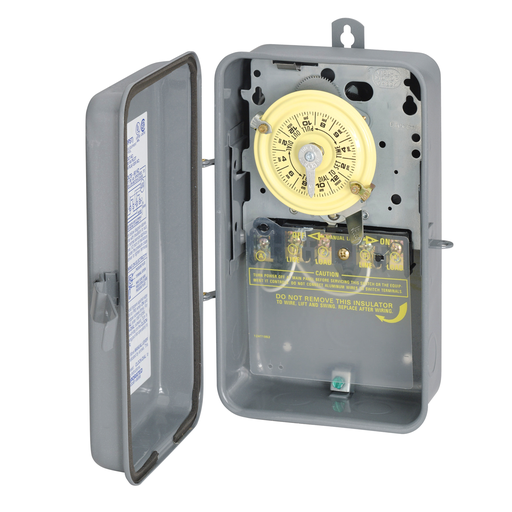

Product image for Intermatic T103R NEMA 3R Steel Case 125 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Intermatic T103R NEMA 3R Steel Case 125 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch

Manufacturer: Intermatic | Catalog # T103R | Codale Part # 42760
$174.47/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Technical Information

Action
DPST
Amperage
40 Amp
Applications
Indoor Lighting Control,Outdoor Lighting Control,Timing/Scheduling ON/OFF
Connection Type
Teeter Type
Contact Configuration
2 NO
Contact Rating
120 VAC
Enclosure
NEMA 3R Steel
Enclosure Type
Indoor/outdoor type 3R metal
Frequency
60 Hz
Input Voltage
120 V
Material
Metal
Max Operating Temperature
130 degrees F
Max Wire Size
8 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Configuration
Wall mount
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
2 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Power Source
Electricity
Size
5-1/2 LENGTH X 4 WIDTH X 9-3/8 HEIGHT IN, 13.97 LENGTH X 10.16 WIDTH X 23.81 HEIGHT CM
Switch Type
DPST
Tc Connection
Teeter Type
Temperature Rating
54.0 degrees C
Type
Medical/Dental/Veterinary - Timers
Voltage
125 Volt
Wattage
3 Watt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275020061
Color
Gray
Environmental Conditions
Indoor/outdoor
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827502006
Used With
Lighting, signs
Weight
3.3900 lb

Dimensions

Depth
3-5/8 Inch
Height
10-1/8 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Features
  • Direct 24-hour control of most loads
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper included
  • Can be installed in most Intermatic enclosures
