HWDK HBL2610M6 LKG RCPT, 30A 125V,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2610M6 | Codale Part # 4276064
$73.54/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

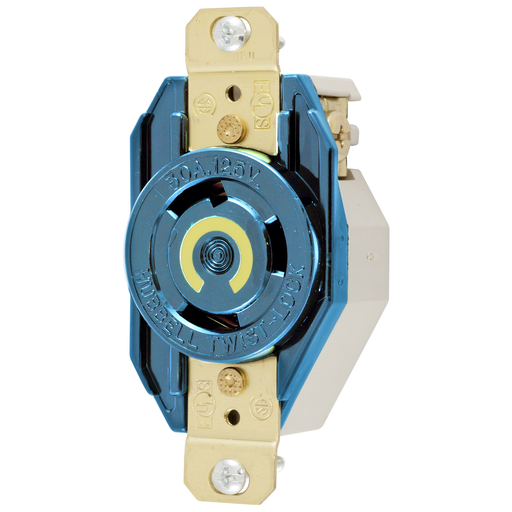

Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Blue.

Technical Information

Amperage
30 Amp
Applications
Industrial Grade
Base Material
Glass-Reinforced Thermoplastic Polyester (RTP),Plastic,RTP
Conductor Size
16-8 AWG
Contact Material
Brass
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
V2 Or Better Per UL94/CSA 22.2 No.0.17
Material
Nylon
NEMA
L5-30R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Screw Material
#10 - 32 Brass

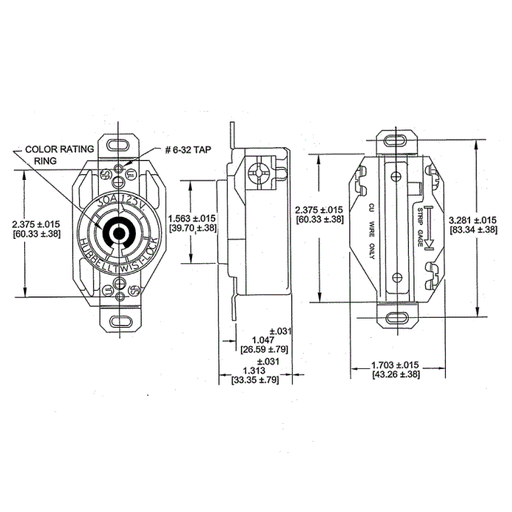

Size
3.28 in x 1.70 in x 1.31 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminals
Type
Single Flush Receptacle
Voltage
125 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585454610
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358545461
Weight
0.2500 lb

Dimensions

Height
1.31 Inch
Length
3.28 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
USA
Features
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Standard Product
