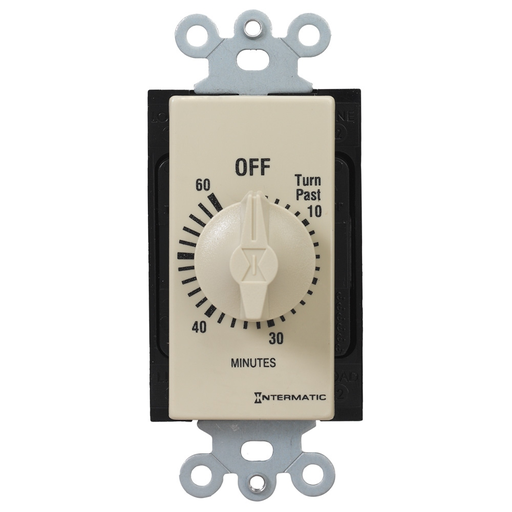

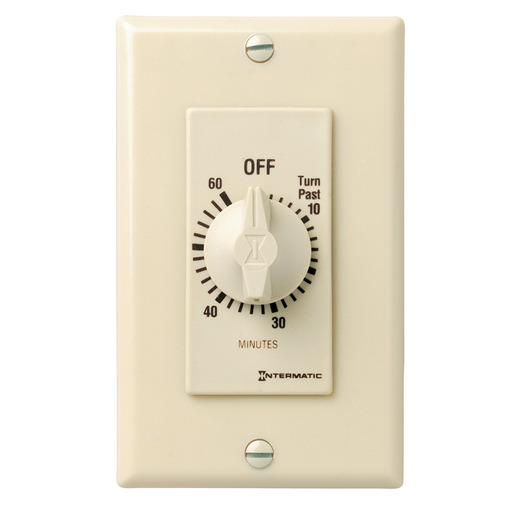

Intermatic FD60MC 60 Minute 125 to 277 VAC 60 Hz SPST Ivory Countdown Timer

Manufacturer: Intermatic | Catalog # FD60MC | Codale Part # 42765
$58.04/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Connection Type
Teeter Type
Contact Configuration
SPST - 1 NO
Contact Rating
7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Max Operating Temperature
120 degrees F
Min Operating Temperature
4 degrees C
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
104 degrees F
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,UL Listed,UL Recognized
Switch Type
SPST
Tc Connection
Teeter Type
Temperature Rating
-40 to 104 degrees F
Type
Decorator, Spring Wound, Auto-Off, Mechanical
Voltage
125-277 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275005051
Color
Ivory
Product UPC
07827500505
Weight
0.301 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

Country of Origin
Tunisia

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • 60-minute timer
  • SPST (Single-Pole Single-Throw)
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Breaks circuit at end of timing cycle
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required
