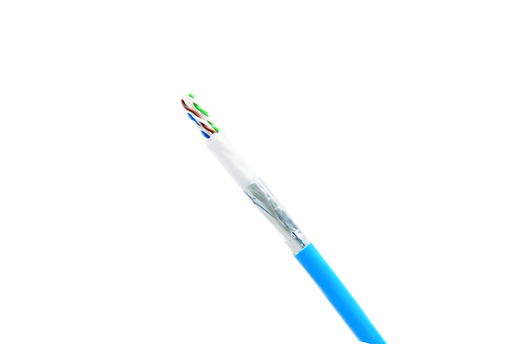

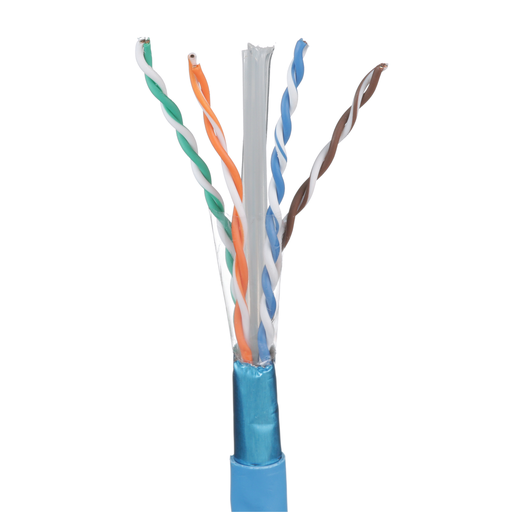

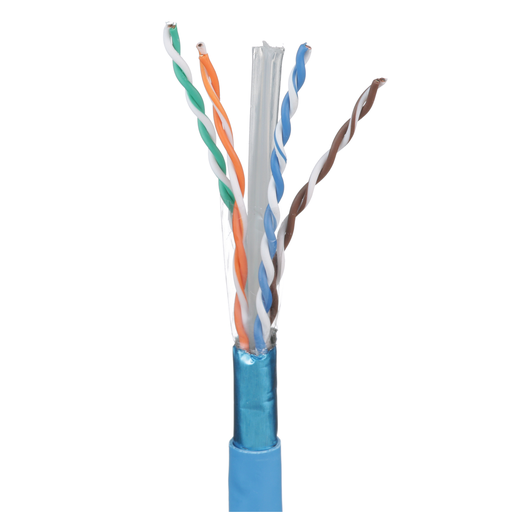

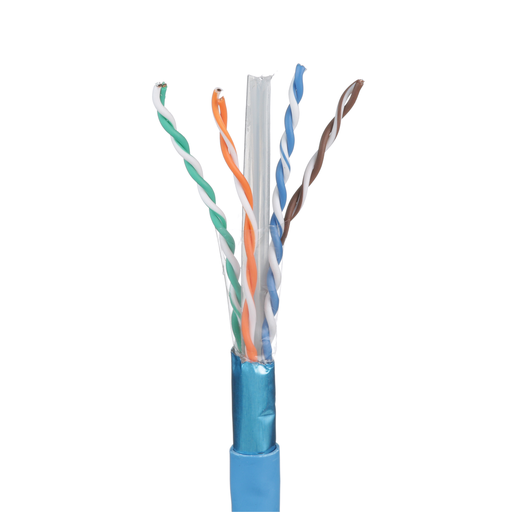

Product image for Panduit PUR6AM04BU-CG Copper, Cable, Cat6A, 23A, CMR, Blue, 1000Ft
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit PUR6AM04BU-CG Copper, Cable, Cat6A, 23A, CMR, Blue, 1000Ft

Manufacturer: PANDUIT | Catalog # PUR6AM04BU-CG | Codale Part # 4276544
$727.95/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Copper Cable, Cat 6A Advanced MaTriX, 4-Pair, 23AWG, U/UTP, CMR, Blue, 1000ft/305m

Technical Information

Applications
Indoor
Cable Type
U / UTP
Conductor Material
Copper
Conductor Size
23 AWG
Conductor Type
Solid
Insulation Material
TPE
Max Operating Temperature
167 degrees F
Min Operating Temperature
-20 degrees C
Number of Conductors
4
Number of Pairs
4
Performance Level
Category 6A/Class EA
Resistance
Flame Retardant
Temperature Rating
167 degrees F
Type
U/UTP
Voltage
8.63 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983071418
Cable Color
Blue
Color
Blue
Construction
U/UTP
Environment
Indoor
Jacket Material
Polyvinyl Chloride
Product Type
Copper Cable
Product UPC
07498307141
Weight
41.3000 lb

Dimensions

Length
1000 Foot
Outer Diameter
0.29 in
Outside Diameter
0.29 in
Overall Length
1000 ft

Certifications and Compliance

ARRA Compliant
No
CE Compliant
No,No
Country of Origin
China
Hazmat Flag
No
Standards and Certifications
  • Standards Met: Exceeds the requirements of ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA, ANATEL 2511-12-6246, CMR-LP 0.5A, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, UL 1666, RoHS Compliant
