Panduit STP28X15MBU Cat6A,28AWG,SHLDPC,CM/LSZH,BU,15M

Manufacturer: PANDUIT | Catalog # STP28X15MBU | Codale Part # 4276892
$215.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

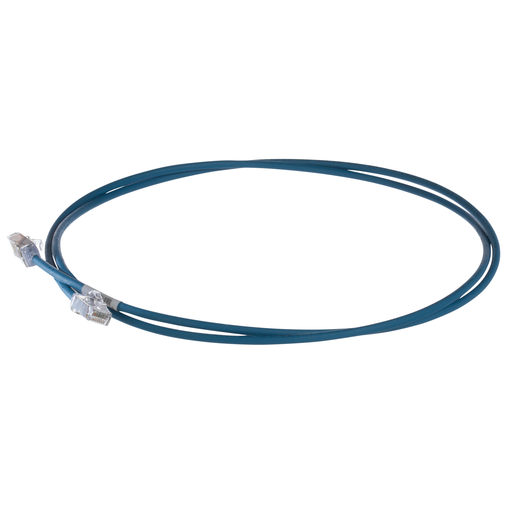

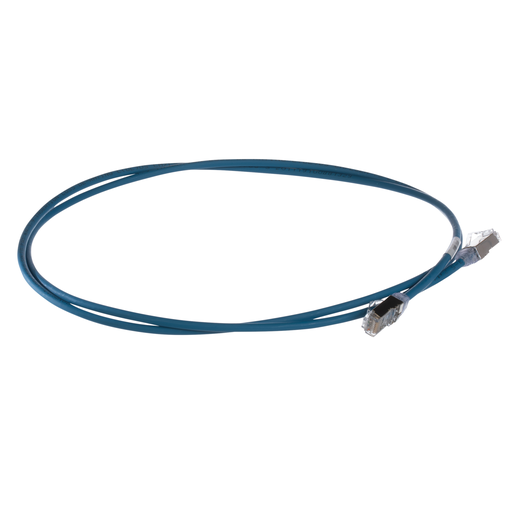

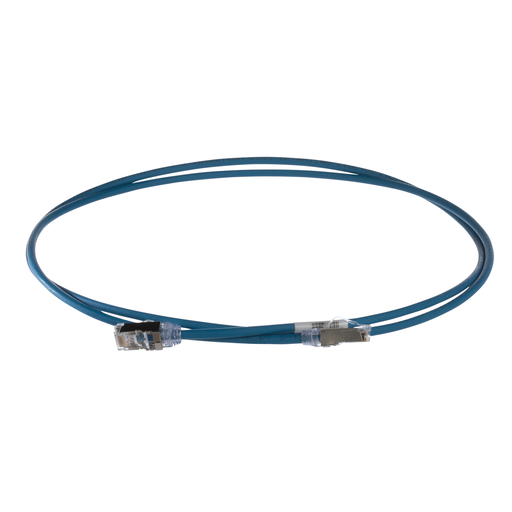

The TX6A-28™ Cat 6A Shielded Patch Cord is constructed of 28 AWG, shielded, twisted pair, solid, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 1.5 meters in length, 0.185 inches (4.7mm) nominal in diameter, and blue.

Technical Information

Applications
(1)10GBASE-T Ethernet(2)Data center I/O Consolidation(3) Data center server virtualization(4)Backbone aggregation(5)Parallel processing and high speed computing
Boot Color
Black
Cable Type
28 AWG F/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Solid
Connector Type
Modular Plug
Max Operating Temperature
75 degrees C
Min Operating Temperature
-10 degrees C
Performance Level
Category 6A
Plug Type
Modular Plug
Standard
CSA,NOM,UL
Temperature Rating
14 - 167 degrees F
Type
Category 6A, Shielded
Wire Size
28 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983002641
Color
Blue
Jacket Material
LSZH Material
Product UPC
07498300289
UNSPSC
43223303,43223303
Weight
0.8000 lb

Dimensions

Cable Length
15 m
Length
49.22 Inch
Outer Diameter
4.7 mm
Outside Diameter
4.7 mm
Overall Length
15 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Meets ANSI/TIA-1096-A (formerly FCC Part 68),Meets IEC 60603-7,Supports IEEE 802.3af/802.3at (48 cables in a bundle) and proposed 802.3bttype 3 and type 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886),RoHS Compliant
