Intermatic K4121C 15A, 120V Photocell

Manufacturer: Intermatic | Catalog # K4121C | Codale Part # 42770
$26.76/ea
ea
Log in or register to view your price, purchase history, and more!
133 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet

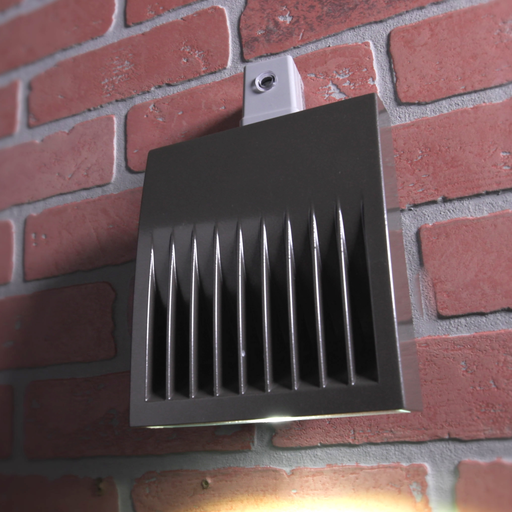

These photocontrols install on standard outdoor light fixtures and electrical boxes with 1?2"-14 NPSM thread or 7?8" punch-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.

Technical Information

Amperage
15 Amp
Applications
Outdoor Lighting Control
Connection Type
Color Coded Lead
Frequency
50/60 Hz
Material
Thermoplastic
Max Operating Temperature
158 degrees F
Max Wire Size
18 AWG
Min Operating Temperature
-40 degrees C
Mounting Configuration
Stem Mount
Mounting Type
Stem Mount
Operating Temperature
158 degrees F
Power Consumption
1 W
Power Rating
1800 W
Sensor Type
Separate Light Sensor
Size
1-9/16 LENGTH X 1-9/16 WIDTH X 3 DEPTH IN, 4 LENGTH X 4 WIDTH X 7.6 DEPTH CM
Standard
CSA,California Title 24 Compliant,Title CA 20 Listed,UL Recognized
Tc Connection
Color Coded Lead
Temperature Rating
70.0 degrees C
Type
Thermal
Voltage
120 Volt
Wire Length
228.6 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275002012
Color
Gray
Finish
Matte
Product Category
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product UPC
07827500201
Used With
Lighting, pathways
Weight
0.21 lb

Dimensions

Depth
1.563 Inch
Height
3 Inch
Warranty Length
2 yr
Width
1.563 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Delay feature prevents unwanted OFF switching
  • Gray plastic housing
  • 1?2\"-14 NPSM threaded stem
  • Washer gasket and locking nut included
  • #18 AWG, 9\" wire leads
  • NA
