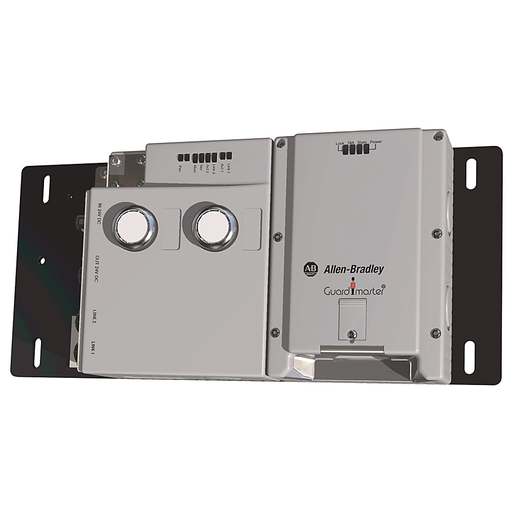

A-B 442G-MABLB-UR-P49 PTL Right Eth

Manufacturer: Allen Bradley / Rockwell | Catalog # 442G-MABLB-UR-P49 | Codale Part # 4278376
$2,658.58/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
PTL Right Ethernet Lock Module

Technical Information

Amperage
4 Amp
Applications
Used in an Integrated Safety System with a GuardLogix™ Safety Controller, Safety Data is Exchanged by Using CIP Safety via an EtherNet/IP Network
Conductor Size
26 AWG
Connection Type
(2) M12 Cable
Contact Configuration
CIP Safety over EtherNet/IP
Enclosure Rating
IP54
Enclosure Type
IP54
Material
Plastic
Standard
CCC,CE,CUL,KC,RCM,UL
Tc Connection
M12, D-coded
Temperature Rating
-20 degrees C to 55 degrees C
Type
Right Hand Guard Door, Power to Lock
Voltage
24 Volt
Wattage
250 mW
Wire Size
26 AWG

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Guardmaster®

General Product Info

12-Digit UPC
887172996627
Product UPC
88717299662
Used With
Guardmaster 442G Multi-Functional Access Box
Weight
8.0100 lb
Features
  • Includes a high coded RFID bolt actuator to achieve the highest level of tamper resistance in accordance with ISO 14119
  • Offers the ability to be wired in a series and maintain a PLe Cat 4 rating for interlocking, guard lock monitoring and control of guard locking
  • Includes a CIP Safety over EtherNet/IP version which enables easy integration in a networked automation control system using Studio 5000 Logix Designer® environment
