Hubbell HBL28W76BK Plug, w/TIGHT, 3P 30A 480V, L16-30P, BK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL28W76BK | Codale Part # 4280816
$137.77/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Plug, 30A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-30P, Black.

Technical Information

Amperage
30 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S AWG Min, 8/3 S, 8/4 S, 10/5 S AWG Max
Contact Material
Nickel-Plated Brass
Cord Size
0.385 - 1.05 in
Cord Type
SJ, S, All Portable
Current
30 Amp
Dielectric Strength
2500 VAC
Material
Composite/Elastomeric
Mounting Type
Cord
NEMA
L16-30P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

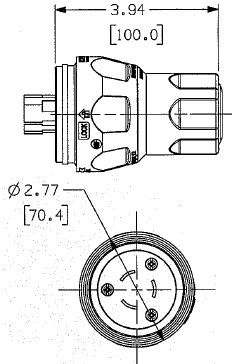

Size
2.77 in x 2.77 in x 3.94 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Type
Plugs
Voltage
480 Volt
Wire Count
4
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131733
Color
Black
Environmental Conditions
UV-Resistance, Moisture-Resistance
Product UPC
78358513173
Weight
0.2500 lb

Dimensions

Height
3.94 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
