Hubbell HBL1389MQRDISC SW, 3P 30A 600V, NEMA1, 1 MTQK Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1389MQR | Codale Part # 4282940
$627.70/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

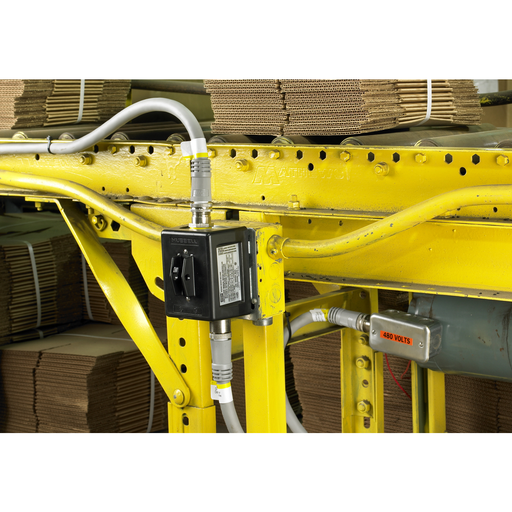

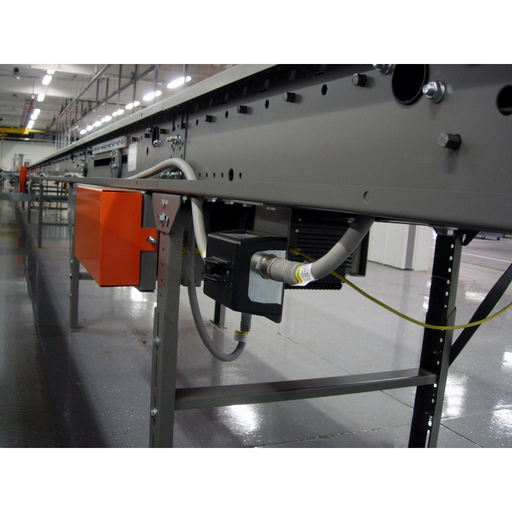

Disconnect Switch, Motor Quick, 3 Pole, 30A 600V AC, NEMA 1 Enclosure, With 1) Pre-Wired LINKOSITY Female Receptacle

Technical Information

Amperage
30 Amp
Applications
Complete Unit with 1) Female LINKOSITY Receptacle (load side)
Conductor Size
14-10 AWG
Current
30 Amp
Enclosure Rating
1
Enclosure Type
Type 1
Horsepower
20 hp
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Power Rating
18,000 W
Size
Standard Sized Product
Standard
Industrial Control Equipment File #E36355,UL 2238,UL 508,UL 50E
Tc Connection
Pressure Screw Terminals
Temperature Rating
Minimum Continuous -40 Deg C without Impact
Type
Enclosed Quick Disconnect Switch
Voltage
600 Volt
Wattage
18000 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
MotorQuick Products

General Product Info

12-Digit UPC
783585310909
Product Series
MotorQuick/LINKOSITY
Product UPC
78358531090
Weight
2 lb

Dimensions

Height
3.4 Inch
Length
4.52 Inch
Width
3.97 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Thermoplastic Cover on Plated Steel Base
  • Crush and Impact Resistance of MC Cable
  • Pre-wired with LINKOSITY® components
  • Standard Product
