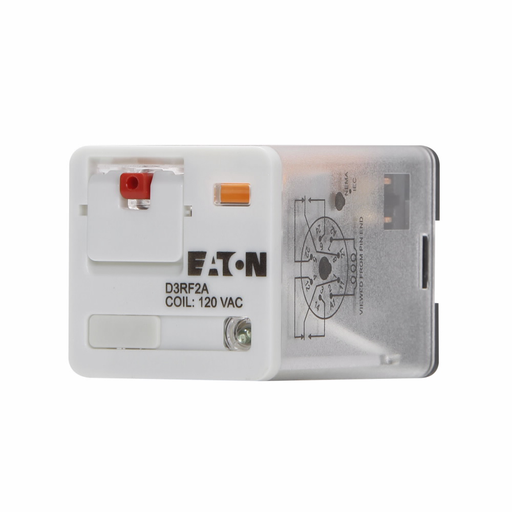

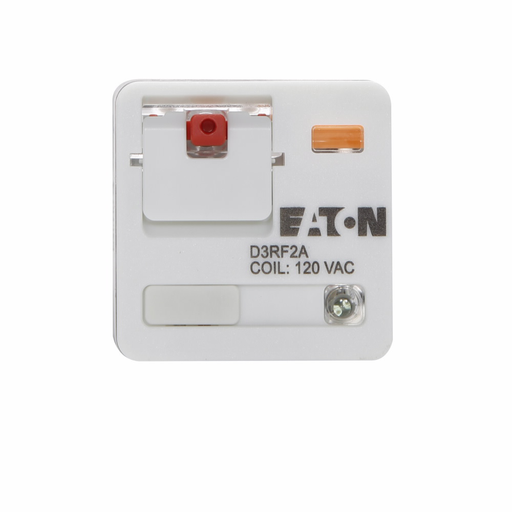

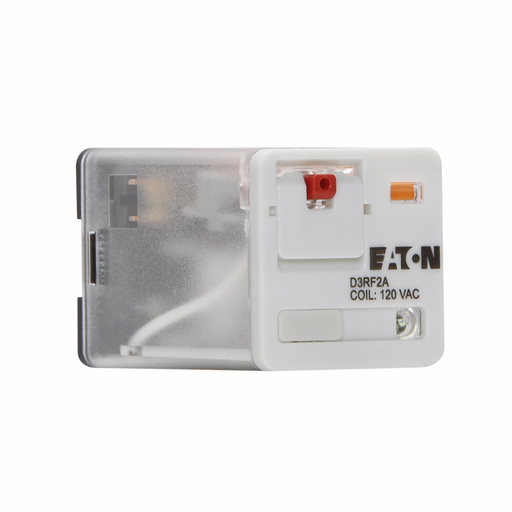

ETN D3RF2T1 ICE CUBE rl,DPDT,OCTAL

Manufacturer: Eaton Cutler-Hammer | Catalog # D3RF2T1 | Codale Part # 4283389
$73.22/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Eaton General-purpose relay, ICE CUBE rl,DPDT,OCTAL BASE,10A,24VDC , ICE CUBE RELAY, DPDT, OCTAL BASE, 10A, 24VDC COIL

Technical Information

Amperage
16 Amp at 120/277 VAC/28 VDC
Applications
Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Contact Configuration
DPDT
Contact Material
Silver Alloy
Contact Rating
10 A
Dielectric Strength
1500 VAC Between Coil and Contact, 1500 VAC Between Poles
Material
Polycarbonate
Mounting Type
DIN Rail/Panel
Number of Poles
2 Pole
Operating Cycles
5000000 Mechanical, 100000 Electrical
Power Rating
1.4 W
Resistance
120 ?
Temperature Rating
-40 to 131 degrees F
Type
Ice Cube, Octal Base
Voltage
300 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786685930183
Environmental Conditions
-40 to 185 F Storage
Product UPC
78668593018
Weight
.2 lb

Dimensions

Height
1-1/2 Inch
Length
1-1/2 Inch
