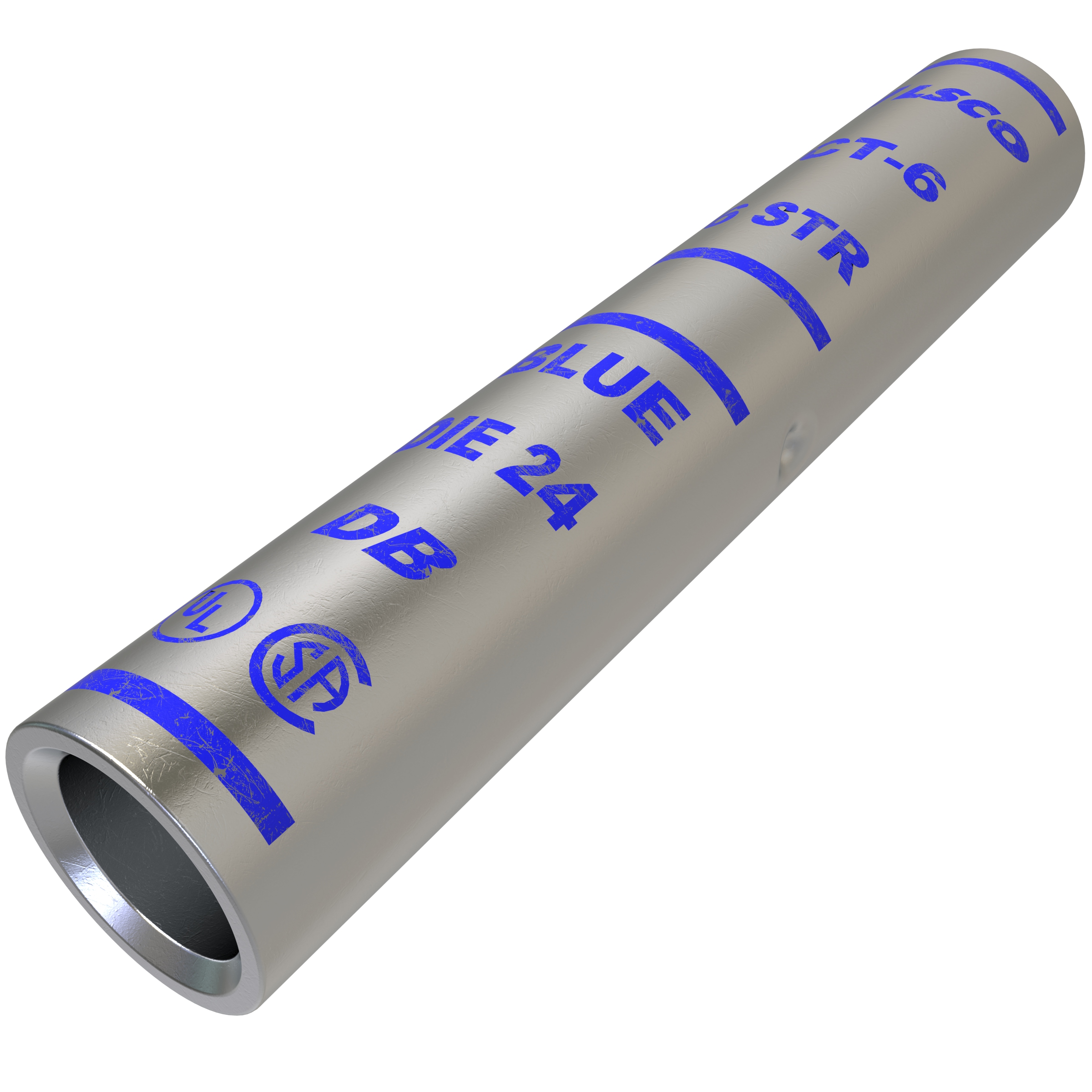

Ilsco CT-6 SureCrimp® Copper Compression Sleeve, Conductor Size 6, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CT-6 | Codale Part # 4283622
$6.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Copper Compression Sleeve, Short Barrel, Compression connection, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 6 Sol, 6 Str, 1 conductors, no sight window, flex conductor range 6 G,H,I,K,M,DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-24,

Technical Information

Applications
Grounding and Bonding
Color Coding
Blue
Conductor Size
6 AWG
Connector Type
Parallel
Die Code
I-24
Material
Copper
Size
L:1.75;W:0.312;H:0.312 IN
Standard
UL File Number: E6207,UL Specifications: UL 486A-B,CSA File Number: LR-29601,NEBS Rating: LEVEL 3
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
UL Model
Voltage
600 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669115901
Color
Blue
Finish
Tin Plated
Product UPC
78366911590

Dimensions

Inside Diameter
0.225 in
Length
1-3/4 Inch
Outside Diameter
0.312 in
