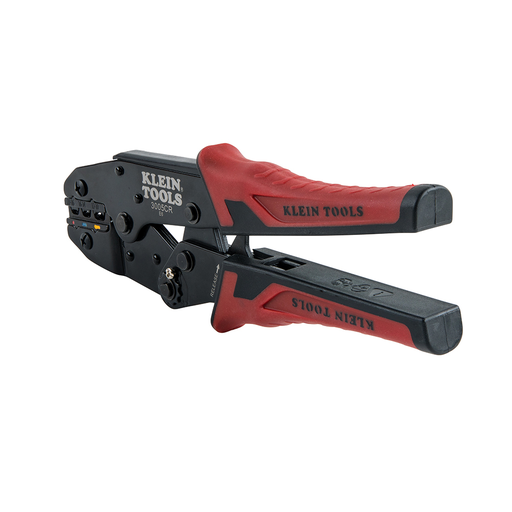

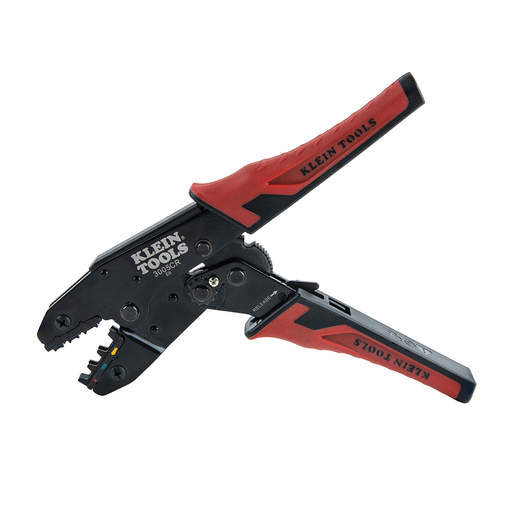

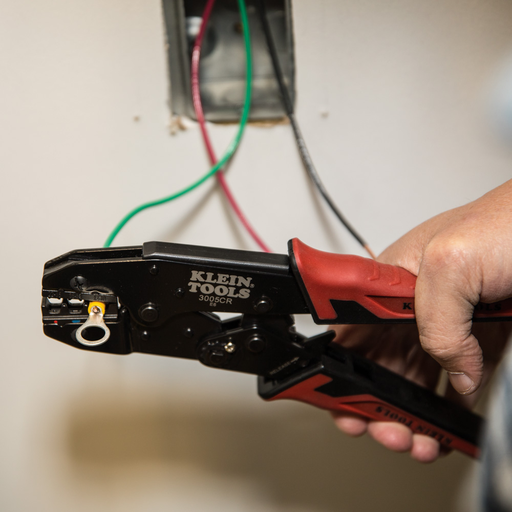

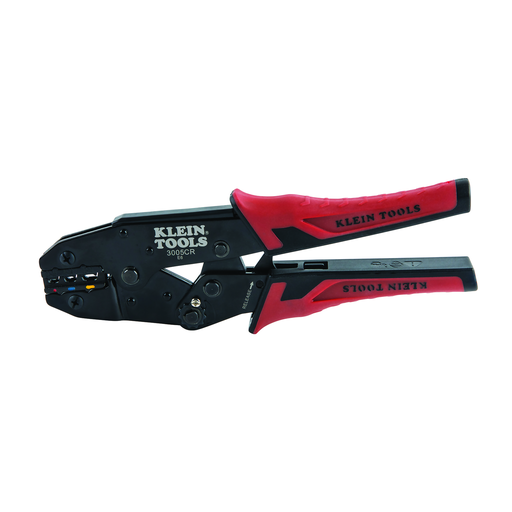

Klein 3005CR Ratcheting Crimper, 10-22 AWG - Insulated Terminals

Manufacturer: Klein Tools | Catalog # 3005CR | Codale Part # 4284116
$34.97/ea
ea
Log in or register to view your price, purchase history, and more!
11 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.

Technical Information

Applications
Wire Crimping
Cable Size
10-22 AWG
Conductor Size
22-10 AWG
Connector Type
Insulated
Material
Steel
Type
3 Crimping Cavities, Insulated
Wire Size
10-22 AWG Stranded

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644344008
Handle Color
Red and Black
Handle Finish
Dual-Material
Product UPC
09264434400
Weight
1.188 lb

Dimensions

Depth
8.94 Inch
Height
0.09 Inch
Overall Length
9 in
Width
3 in

Certifications and Compliance

Country of Origin
China
Features
  • Crimps insulated terminals onto 10-22 AWG stranded copper wire
  • Adjustable compound action design puts more crimping power into each squeeze
  • Three crimping cavities in one tool: 2216 AWG (Red), 1614 AWG (Blue) and 1210 AWG (Yellow) terminals
  • Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
  • Unique cavity design provides consistent crimp from either side of the tool
  • Dial adjusts the amount of force applied to the crimp
  • Dual-material molded grips provide added comfort
  • 3 Crimping Cavities
Warnings
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
