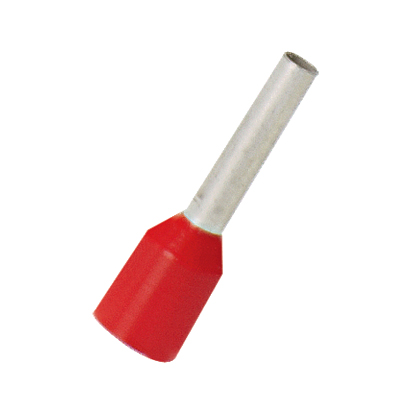

Panduit FSDX77-8-D Covered Single Wire Ferrules

Manufacturer: Panduit | Catalog # FSDX77-8-D | Codale Part # 4286117
$199.81/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Polypropylene insulated ferrules single wire red DIN color expanded end sleeve, (1.0mm.) Wire Size, 0.31 (8.0mm) Pin Length.

Technical Information

Color Coding
NA
Conductor Size
18 AWG
Material
Copper
Max Operating Temperature
105 degrees C
Standard
IEC 60947; EN 60947; UL Listed; CSA Certified; DIN VDE 0600
Temperature Rating
221 degrees F
Type
Insulated
Wire Size
1 mm

Packaging

Pkg Qty
500

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
DIN 46228 color code, UL 486F Listed, CSA

General Product Info

12-Digit UPC
074983333769
Color
Red
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498333376
UNSPSC
39121409
Weight
0.1100 lb

Dimensions

Outer Diameter
0.07 in
Overall Length
0.57 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Germany
Standards and Certifications
  • Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
