Hubbell HBL2713SRCAT#HBL2713, REV SERV MOD

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2713SR | Codale Part # 4286398
$518.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Reversed Service Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Black and White.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
16-8 AWG
Contact Material
Brass
Current
30 Amp
Flamability Class
HB Or Better Per UL94/CSA 22.2 No.0.17
Material
Composite
Number of Conductors
4-Wire Grounding
Number of Phases
1 Phase
Number of Poles
3-3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass
Size

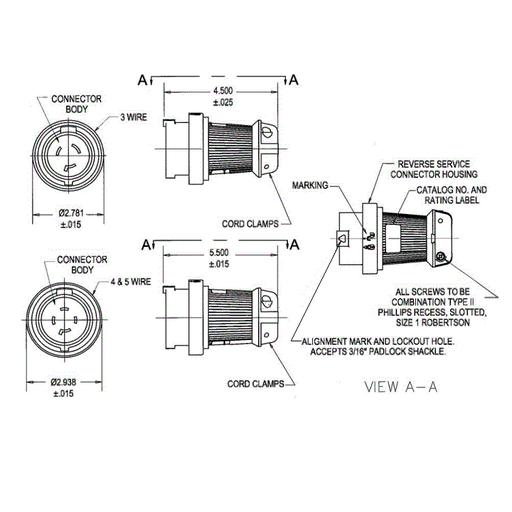

2.94 in x 2.94 in x 5.5 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
Maximum Continuous: 75?degrees C; Minimum Continuous: -40?degrees C w/o impact, -25?degrees with impact.
Type
Non-Reversing
Voltage
125/250 Volt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock

General Product Info

12-Digit UPC
783585231792
Color
Black/White
Environmental Conditions
Watertight
Product UPC
78358523179
Weight
0.4000 lb

Dimensions

Height
5-1/2 Inch
Length
2.94 Inch
Width
2.94 in

Certifications and Compliance

Country of Origin
USA
Features
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Superior cord grip design protects terminations from excess strain
  • UL Type 4X Environmental seal protects connection while in use.
  • Shrouded Watertight Reverse Service
