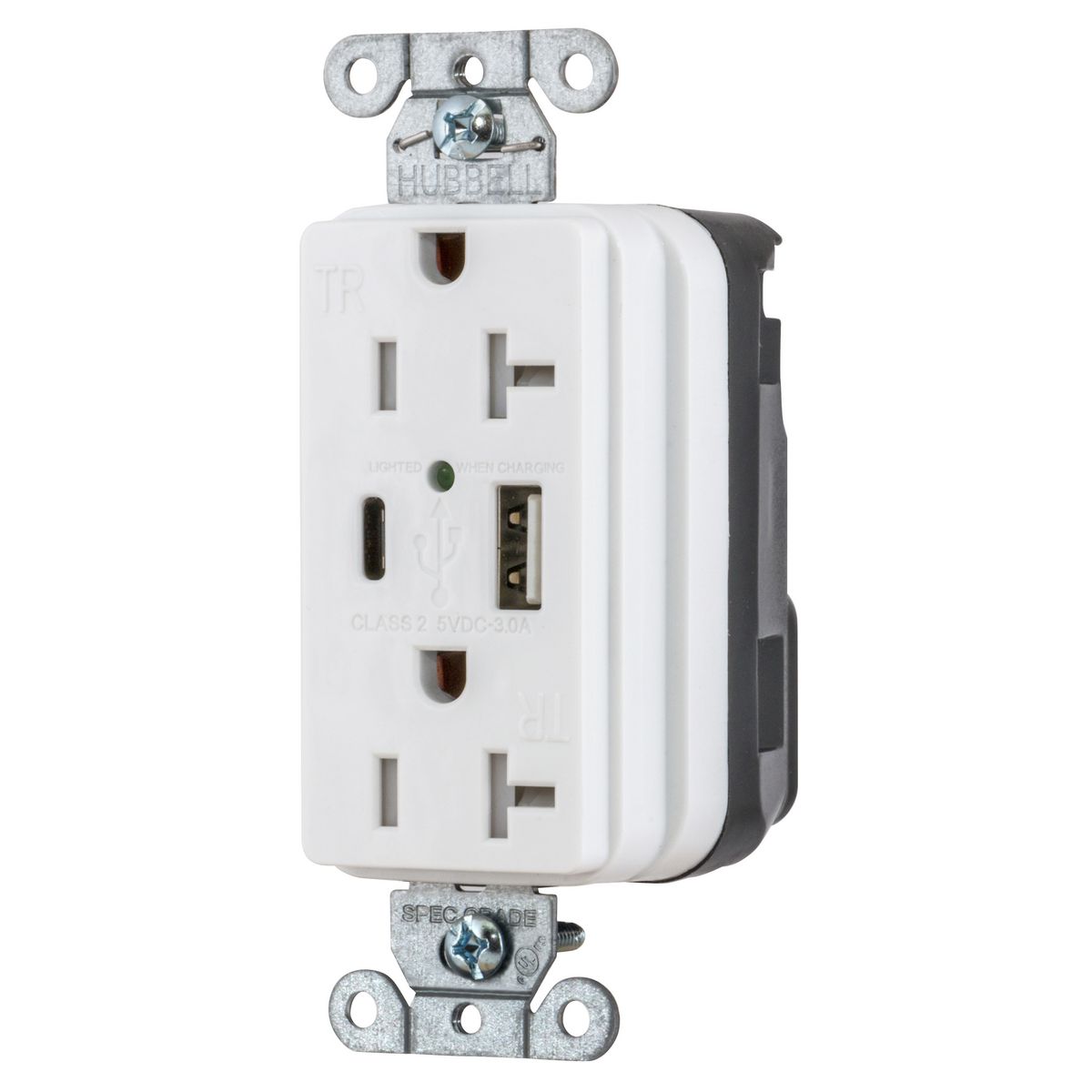

HWDK SNAP20UACW USB CHG SNAP 20A125

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP20UACW | Codale Part # 4286569
$63.20/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
SNAPConnect USB Charger Receptacle, one USB Type A and one Type-C port, 3.0 Amp, 5 Volt DC, White

Technical Information

Amperage
20 Amp
Applications
Power and USB Charging
Conductor Size
14-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 1,500V minimum Complies with USB BC1.2 Battery Charging and 3.0 Power Delivery Specifications
Material
Thermoplastic
NEMA
5-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Size
Standard Sized Product
Style
Style Line Decorator
Tc Connection
Connectorized
Temperature Rating
Maximum continuous 75degrees C, minimum -40degrees C (w/o impact)
Type
One USB Type-A and one Type-C port
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-10

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
883778308529
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
88377830852
Weight
0.3000 lb

Dimensions

Height
1.9 Inch
Length
4.2 Inch
Width
2.2 in

Certifications and Compliance

Country of Origin
China
Features
  • Fast Charge USB Ports
  • Combination Ports, One Type A, One Type C
  • High Power 3 Amp, up to 9 Volt USB Output
  • USB Ports Rated 10,000 Cycles
  • Commercial Grade Receptacle
