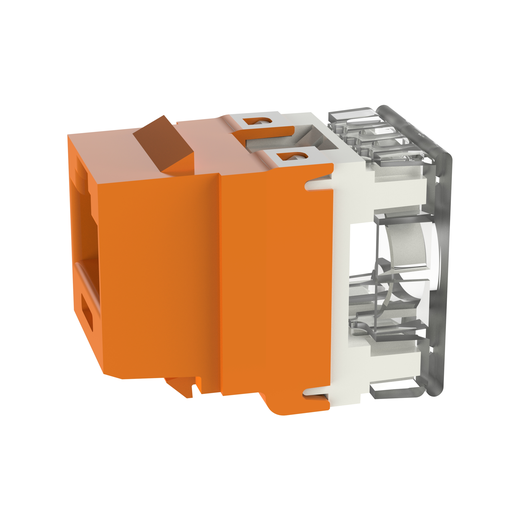

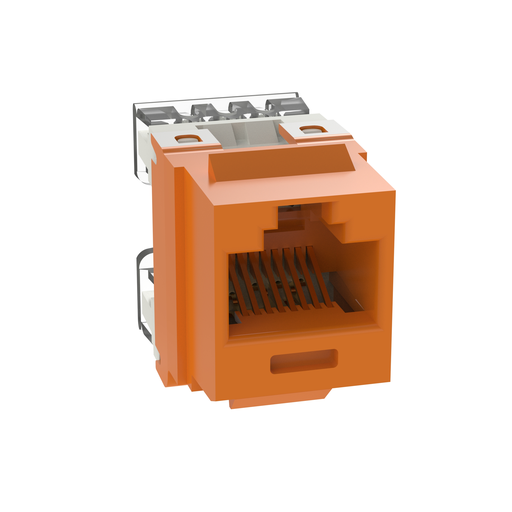

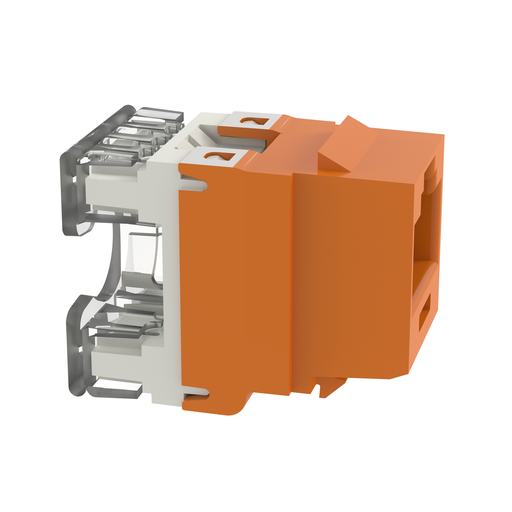

Panduit NKP5E88MOR NetKey Cat 5e Punchdown Jack, Orange

Manufacturer: PANDUIT | Catalog # NKP5E88MOR | Codale Part # 4286737
$13.66 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The NetKey® Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is orange.

Technical Information

Applications
For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)
Cable Size
26-22 AWG
Cable Type
Category 5e
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Mounting Type
Surface/Patch Panel/Faceplate
Number of Positions
8
Performance Level
Category 5e
Temperature Rating
-10 to 65 degrees C
Type
8-Wire, Keystone, Unshielded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983106929
Color
Orange
Product UPC
07498310692
UNSPSC
43223301
Used With
T568A/T568B Cable
Weight
0.0200 lb

Dimensions

Depth
1.16 Inch
Height
22.9 mm
Overall Length
29.5 mm
Width
16.5 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
