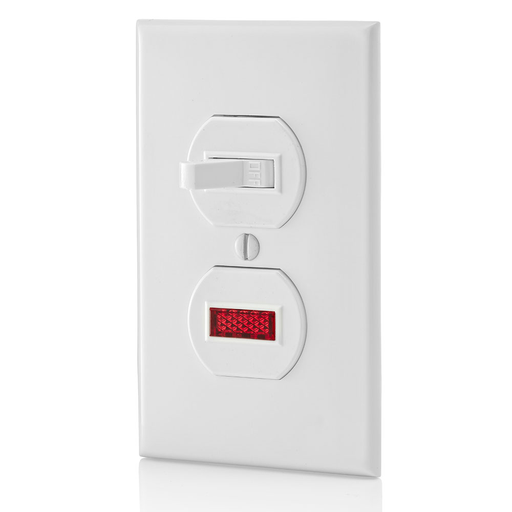

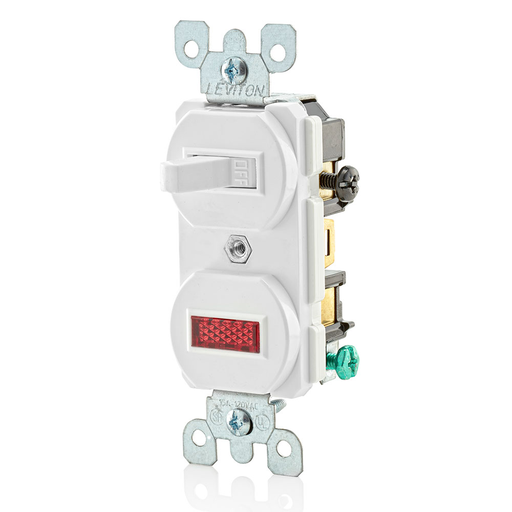

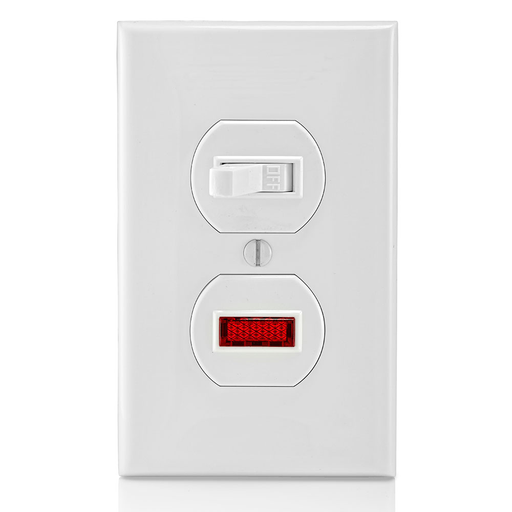

Leviton 5226-W 120/277 VAC 15 Amp 1-Pole 1/2 Hp White Thermoplastic Non-Grounding Duplex AC Combination Switch

Manufacturer: Leviton | Catalog # 5226-W | Codale Part # 42879
$28.48/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired - White

Technical Information

Actuator
Toggle
Amperage
12 Amp
Applications
For Commercial Application
Body Material
Thermoplastic
Connection Type
Side Wired
Contact Rating
120 V
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Flush
NEMA
WD-1
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Size
4.20 H x 1.62 W x 16 D IN
Standard
ANSI C-73
Switch Type
(1) Rocker/Button OFF, Toggle
Tc Connection
Side Wired
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Duplex
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL COMBINATION DEVIC

General Product Info

12-Digit UPC
078477227008
Color
White
Environmental Conditions
Flammability (Rated V-2 per UL94)
Product Type
Switch/Pilot Combo
Product UPC
07847722700
Weight
0.2480 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Brown
Features
  • With Levitons extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and Tamper-Resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
