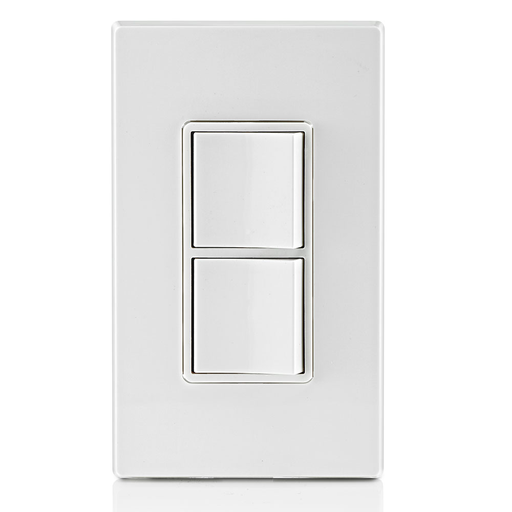

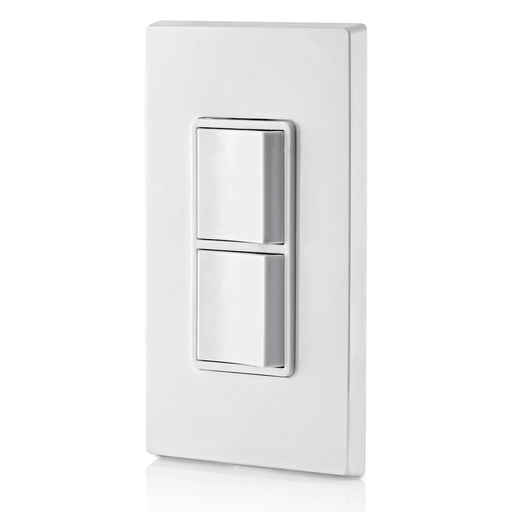

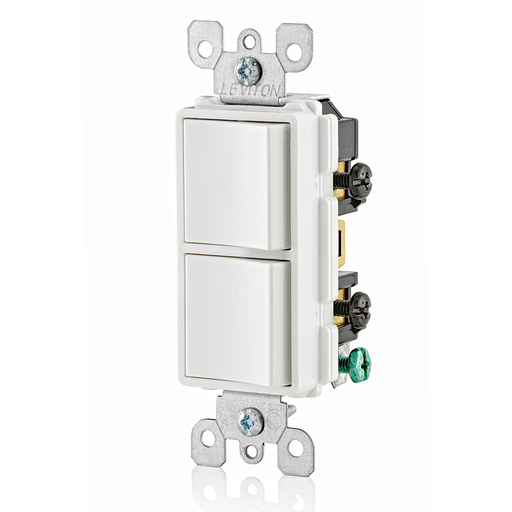

Leviton 5641-W 120/277 Volt 15 Amp 1-Pole 2 Hp 3-Way White Thermoplastic Grounding Decorator AC Combination Switch

Manufacturer: Leviton | Catalog # 5641-W | Codale Part # 42880
$51.67/ea
ea
Log in or register to view your price, purchase history, and more!
61 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 120/277 Volt, Decora Single-Pole / 3-Way AC Combination Switch, Residential/Commercial Specification Grade, Grounding, Side Wired, - White

Technical Information

Actuator
Rocker/Button
Amperage
12 Amp
Applications
For Commercial
Body Material
Thermoplastic
Connection Type
Side Wired
Contact Rating
120/277 V
Enclosure Type
NEMA 5-15R
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
NEMA
5-15R,5-15R
Number of Poles
1 Pole
Operating Temperature
-40 To 120 degrees C
Size
4.20 H x 1.31 W x 16 D IN
Standard
CSA,UL
Tc Connection
Side Wired
Temperature Rating
-40 to 120 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Combination, 3 Way
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477516683
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product Type
2-Switch Combo
Product UPC
07847751668
Weight
0.2300 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Leviton's Decora Combination Switch is the perfect choice for any area in a home. Its simple, functional design allows you to save space wherever the switch is installed. Beautifully styled and part of the notable Decora line, the switch comes in a variety of popular colors. Its impact-resistant exterior ensures damage protection and a long service life.
