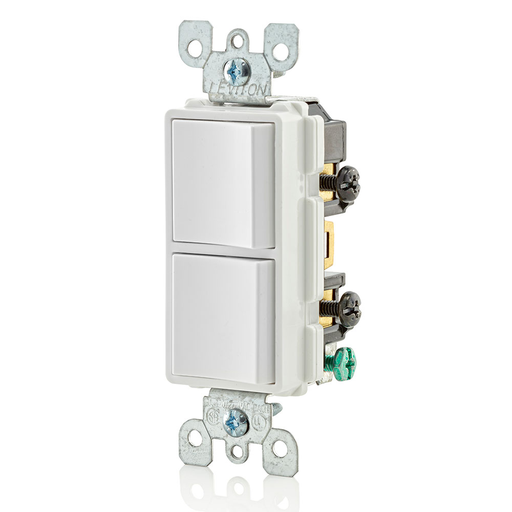

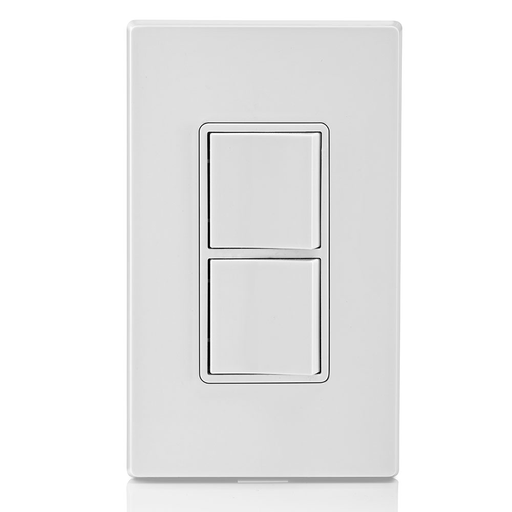

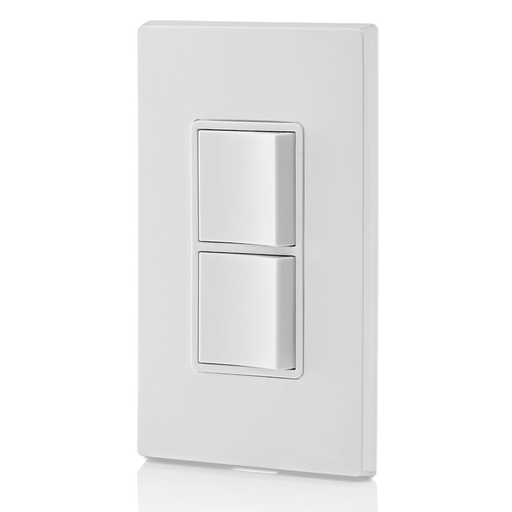

Leviton 5634-W 120/277 Volt 15 Amp 1-Pole 2 Hp White Thermoplastic Grounding Decorator AC Combination Switch

Manufacturer: Leviton | Catalog # 5634-W | Codale Part # 42881
$34.83/ea
ea
Log in or register to view your price, purchase history, and more!
68 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 120/277 Volt, Decora Single-Pole / Single-Pole AC Combination Switch, Residential/Commercial Specification Grade, Grounding, Side Wired - White

Technical Information

Actuator
Rocker
Amperage
12 Amp
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Side Wired
Contact Rating
120/277 VAC, 15 A
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate, Flush, Screw
NEMA
5-15R,5-15R
Number of Poles
1 Pole
Operating Temperature
-40 To 120 degrees C
Size
4.20 H x 1.31 W x 16 D IN
Standard
CSA,UL
Tc Connection
Side Wired
Temperature Rating
-40 to 120 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Dual Rocker, 3-Way
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477516386
Color
White
Environmental Conditions
Flammability (Rated V-2 per UL94)
Product Type
2-Switch Combo
Product UPC
07847751638
Weight
0.2000 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Brown
Features
  • Leviton's Decora Combination Switch is the perfect choice for any area in a home. Its simple, functional design allows you to save space wherever the switch is installed. Beautifully styled and part of the notable Decora line, the switch comes in a variety of popular colors. Its impact-resistant exterior ensures damage protection and a long service life.
