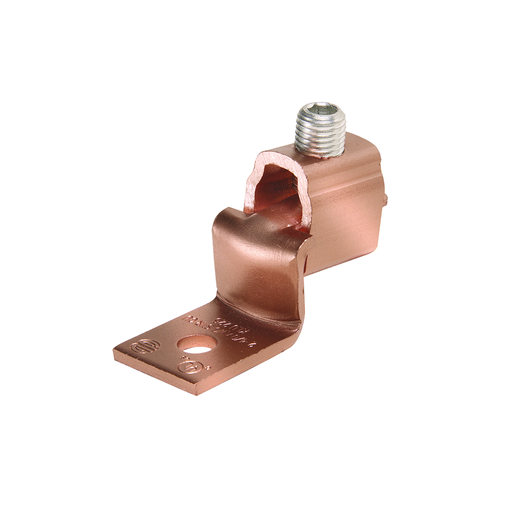

BUR KLU125RK 3PC/PK OFFSET LUG 1/0s

Manufacturer: Hubbell-Burndy | Catalog # KLU125RK | Codale Part # 4288172
$39.77/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Copper alloy SCRULUG Terminal,conductor: 2 Str. .292 Dia. To 1/0 Str. .372 Dia. CU,stud hole:1/4.

Technical Information

Applications
For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar
Bolt Size
3/8 IN
Conductor Size
1 AWG
Direct Burial?
No
Material
Copper
Plated?
No
Plating Type
Unplated
Screw Type
Slot
Stud Size
1/4 in
Temperature Rating
194
Type
Bolted Lugs & Terminals

Manufacturer Information

Brand
Burndy
Sub Brand
SCRULUG

General Product Info

12-Digit UPC
781810411780
Finish
Copper
Product UPC
78181041178
Weight
0.3500 lb

Dimensions

Hole Size
7 mm
Length
1.99 Inch
Pad Width
0.63 in
Width
0 mm

Certifications and Compliance

CSA
No
Features
  • Features: Convenient Range-Taking Design: One Conductor Accommodates Several Conductor Sizes, High Conductivity Copper Alloy: Long Lasting Reliable Contact, Compact Design: Easy To Use, Reduces Labor Time, Slot Robertson Screw, Hex Head/Hex Socket Bolt: No Special Installation Tools Required, Eliminates Over-Torquing/Potential Conductor Damage, High Copper Alloy Terminal With Offset Tongue For Joining A Wide Range Of Cable To Equipment Pads Or Bar, Easy To Install With Screwdriver Or Wrench, Connector Is Reusable, Plain Copper Finish, For Copper Cable, Dimension N: 0.43 IN, Dimension B: 0.63 IN, Package: Clamshell, Dimension K: 0.26 IN, Set Screw Type: Slot Robertson, Wire Strip Length: 15/16 IN, Width: 0.62 IN Pad, Dimension T: 0.11 IN, Length: 1.99 IN, Installation Torque: 50 IN-LB, Stud Size: 1/4 IN
