HWDK USB20AC5WWR DUP TRWR 20A 125V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # USB20AC5WWR | Codale Part # 4288754
$102.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual

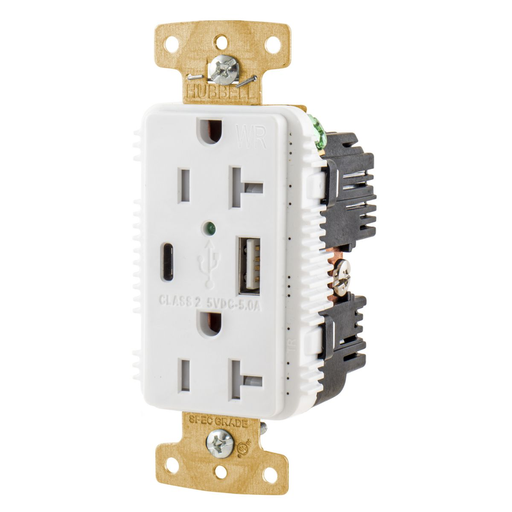

20A/125V Tamper Resistant/Weather Resistant Duplex Receptacle & Type A & C USB Ports, White

Technical Information

Amperage
20 Amp
Applications
USB Charging/Power
Conductor Size
14-12 AWG
Current
20 Amp
Material
Composite;Other
NEMA
5-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Size
Standard Sized Product
Style
Style Line Decorator
Tc Connection
Terminal Screws
Type
Non-Reversing
Voltage
125 Volt
Wire Size
14-12

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
USB Chargers

General Product Info

12-Digit UPC
883778309236
Color
White
Product Series
USB Charger
Product UPC
88377830923
Weight
0.3850 lb

Dimensions

Height
1.9 Inch
Length
4.2 Inch
Width
2.2 in

Certifications and Compliance

Country of Origin
China
Features
  • Weather and Tamper Resistant Commercial Grade
  • Combination Ports, One Type A, One Type C
  • High Power 5 Amp, 5 Volt USB Output
  • USB Ports Rated 10,000 Cycles
