Lithonia EU2L-M12 Emergency Lighting Unit, Low Profile, Dual Heads, Ivory White Housing, 120/277V

Manufacturer: Lithonia Lighting | Catalog # EU2L-M12 | Codale Part # 4289137
$51.24/ea
ea
Log in or register to view your price, purchase history, and more!
21 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
The Lithonia Lighting EU2L LED Emergency Light is suitable for emergency lighting applications such as stairways and hallways. Designed with all-inclusive lamp, reflector and lens assembly. Its low profile and dual lamp heads make the EU2L ideal for safely illuminating the path of egress in small spaces at lower mounting heights. It can be wall or ceiling mounted and will provide 90 minutes of emergency power in the case of power loss.

Technical Information

Applications
Education,Hospitality,Offices & Banks,Retail
Color Temperature
5000 K
Correlated Color Temp
5000 K
Lamp Type
LED
Lens Color
Clear
Lens Material
Plastic
Lumens
150 Lumen
Mounting Type
Surface
Power Source
Hardwired
Type
Emergency Lighting Unit
Voltage
120 Volt
Wattage
0.75 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
191848035351
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Fixture Type
Emergency Lighting Unit
Product UPC
19184803535
Weight
0.7 lb

Dimensions

Height
4-1/2 Inch
Length
7-7/8 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
Vietnam,Vietnam
Features
  • DESIGN: This low-profile design features dual adjustable lamp heads making it ideal for small spaces at lower mounting heights
  • ENERGY EFFCIENCY: LEDs improve your payback and reduces your total cost of ownership
  • MOUNTING: Wall mount and ceiling mount; Surface mount back plate fits most standard size junction boxes and snaps into place
  • RATINGS / LISTINGS: UL Listed. Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code),NFPA 70 (NEC), California Title 20 section 1605.3 (W)(4), FCC and OSHA; Indoor damp location 50° to 104°F (10°C to 40°C) listed standard
  • USE: Provides a min of 90 minutes illumination
  • HOURS OF LIFE: The typical life of the LED is 10 years
  • AIMABLE: The fully adjustable LED lamp heads allow for more accurate illumination of tight spaces at lower mounting heights
  • BATTERY: 3.6V Maintenance-free, rechargeable, nickel-cadmium; Bi-color LED status indicator for battery condition
  • WARRANTY: 2 year limited warranty

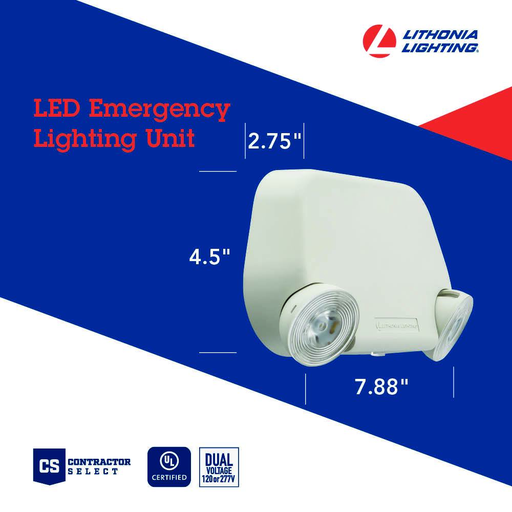

  • DIMENSIONS: 7.88\" X 2.75 X 4.5
Applications
  • Education
  • Hospitality
  • Offices & Banks
  • Retail
Standards
  • NFPA 101
  • ULCA Title 20
