NVENT HOF M400400210GSS 400x400x210

Manufacturer: nVent Hoffman | Catalog # M400400210GSS | Codale Part # 4289264
*Call For Price*
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

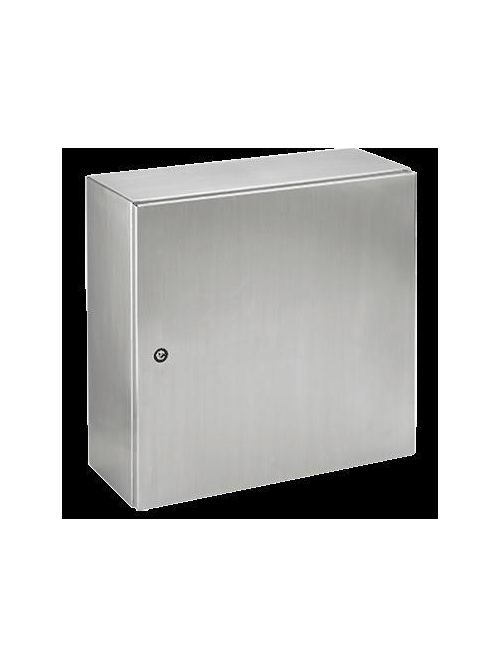

This GL66 stainless steel wallmount uses quarter turn latching with 3mm double-bit insert. This GL66 Wallmount 1/4 Turn Latch Type 4X, M400400210GSS item measures 400x400x210mm with a material of SS 304, Brushed.

Technical Information

Body Thickness
1.59 mm
Door Gauge
16
Gauge
16
Material
Stainless Steel
Mounting Type
Wall
Type
Medium

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510267865
Finish
Smooth
Product UPC
78351026786
Weight
25 lb

Dimensions

Depth
8.27 Inch
Height
15-3/4 Inch
Length
17 Inch
Width
15-3/4 in
Features
  • Removable hinges and double-bit latch insert
  • Dimensions in millimeters
  • Minimum-width body flange provides maximum body opening
  • Pre-cut gland plate openings in the bottom of the enclosure with a seal to ensure protection
  • External formed 90 degree body flange
  • Door opens 210 degrees
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 316 stainless steel hinge pins
  • Corner-formed doors are easily removed by pulling clip-style hinge pins
  • Quarter-turn latches furnished with 3mm double-bit insert
  • Seamless foam-in-place gasket
  • Self-grounding latch system with double seal
  • Grounding stud on the body
  • Full-sized galvanized steel back panel included
  • Bonding provision on the door
  • Furnished hardware kit includes: gasketed gland plates and hardware, grounding hardware and sealing washers for wallmounting holes
  • Installation instructions
  • Three-point latching on enclosures 1000 mm and taller
