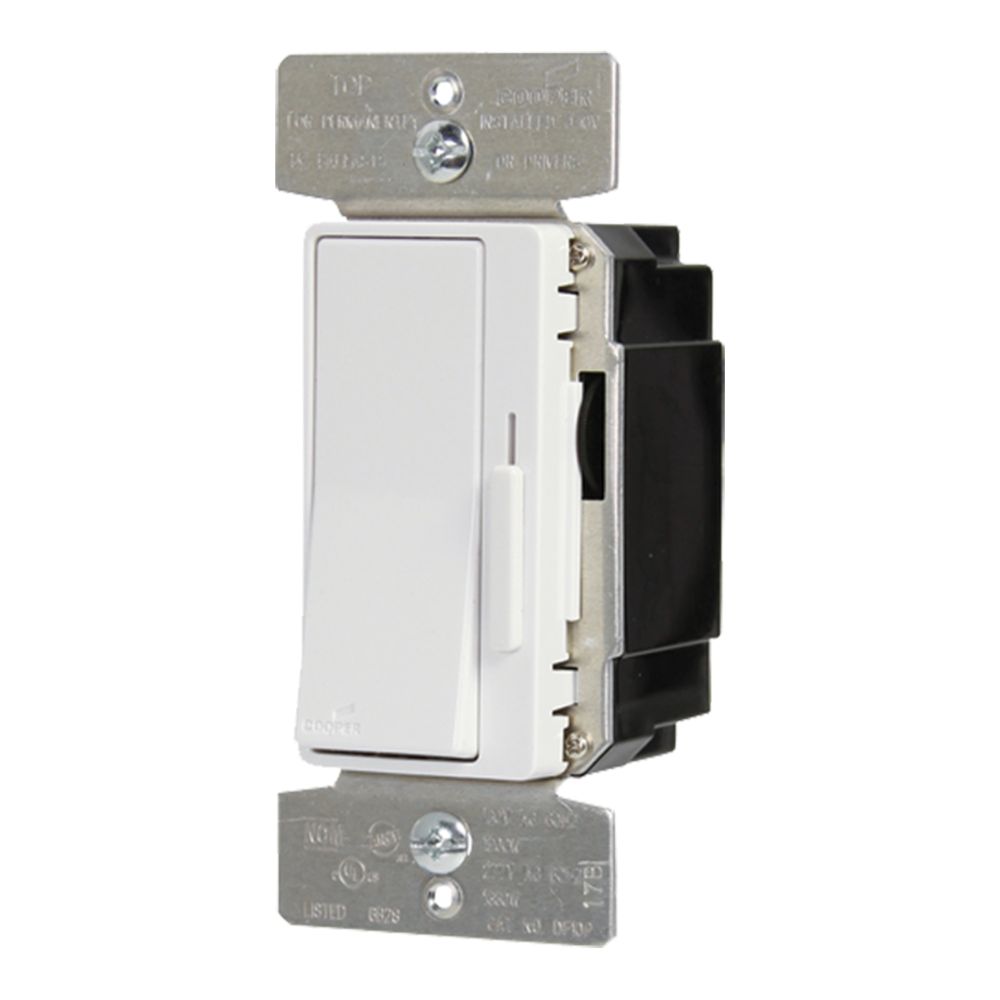

Product image for Greengate WBSD-010DEC-C1 0-10V Decorator Wallswitch Slide Dimmer, 120/277VAC, White/Ivory/Almond
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Greengate WBSD-010DEC-C1 0-10V Decorator Wallswitch Slide Dimmer, 120/277VAC, White/Ivory/Almond

Manufacturer: Cooper Lighting Solutions | Catalog # WBSD-010DEC-C1 | Codale Part # 4291317
$116.39/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Installation / Instruction Manual
The 0-10V Decorator Dimmer provides full-range classic linear-slide dimming for 0-10 Volt compatible dimmable light sources. These units are ideal for light commercial applications and are compatible with decorator style devices and wallplates. Units feature a preset .ON/OFF. switch that automatically returns controlled light(s) to a preset level without disturbing the brightness level. The device is designed for both Single-pole (one location) and 3-way (multi-location) applications.

Technical Information

Action
Slide/On/Off
Amperage
10 Amp at 120 V, 6 Amp at 277 V
Applications
Lighting
Conductor Size
16 AWG
Mounting Type
Surface
Number of Poles
1 Pole
Operating Temperature
-20 to 70 degrees C
Power Rating
1200 W at 120 V, 1660 W at 277 V
Size
3.2 IN Length 2.75 IN Width 5.0 IN Height
Type
Wall Switch No Sensor - 120V
Voltage
120 Volt
Wattage
N/A Watt

Packaging

Pkg Qty
1350

Manufacturer Information

Brand
Greengate
Sub Brand
Market Pro

General Product Info

12-Digit UPC
080083735266
Finish
Almond
Product UPC
08008373526
Weight
0.35 lb

Dimensions

Height
5 Inch
Length
3.2 Inch
Width
2.75 in

Certifications and Compliance

ARRA Compliant
No
Country of Origin
China
Features
  • Allows user to return to previous light level when turning lights ON
  • Integrated full-slide control for easy, precise operation
  • Can be wired as Single-pole or 3-way
  • Neutral is not required for installation of device
  • Adjustable high-level trim setting for optimal lamp compatibility
  • Each package includes faceplate kit with 3 colors
