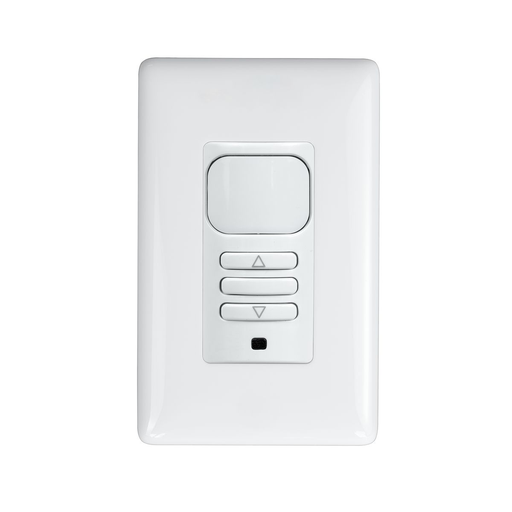

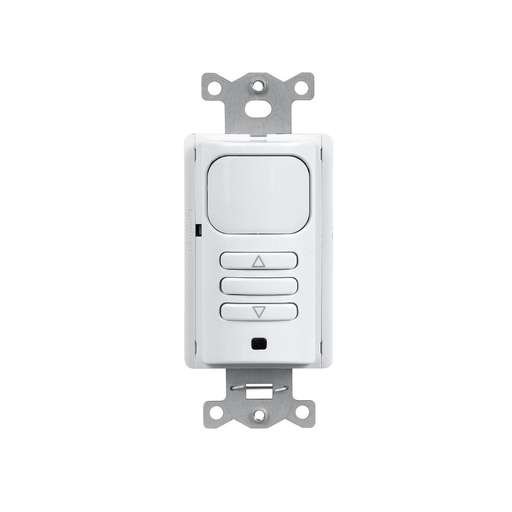

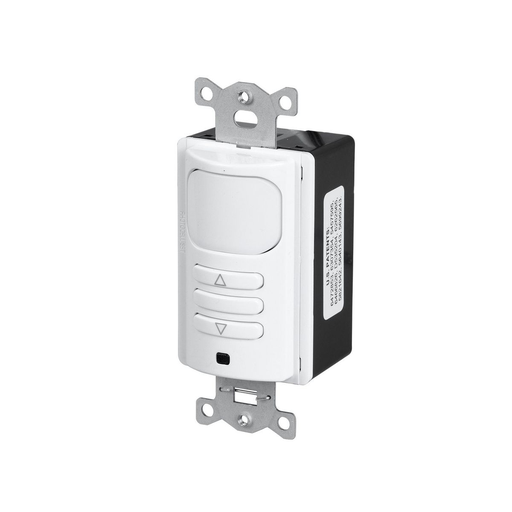

HBA LHD-IRS3-N-WH LH2 Dimmer IR 1Cr

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # LHD-IRS3-N-WH | Codale Part # 4292794
$210.04/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
LightHAWK2™ dimming wall switch, Type: Passive Infrared Single Relay, Number of Buttons: 3, Voltage Rating: Low Voltage, 24 VDC;Line Voltage, 120 V-347 V, Dimming Range: 0-10V, Sink up to 30mA, Coverage: 1000 ft., Mounting Type: Single Gang Wall Switch Box, Color: White, Switchable Vacancy or Occupancy Mode.

Technical Information

Applications
For Data Centers and Wiring Closets
Standard
CSA,E2186,UL
Type
Passive
Voltage
120/277;24;347

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
640181709585
Color
White
Product UPC
64018170958
Weight
0.3400 lb

Dimensions

Height
4.6 Inch
Length
2.2 Inch
Warranty Length
5 yr
Width
2.900 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Features
  • Digital passive infrared (PIR) sensor
  • IntelliDAPT self-adaptive technology
  • no manual adjustment required
  • Occupancy (auto-on) and Vacancy (manual-on) operating modes
  • 1,000 square-foot, 180° coverage area
  • RhinoTuff lens
  • 120/277 VAC operation
  • No minimum load requirement
  • Zero Arc Point Switching
  • Five-year limited warranty
