HWDK HBL14W49 PLUG, W/TIGHT, 6-15P,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL14W49 | Codale Part # 4293179
$45.09/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

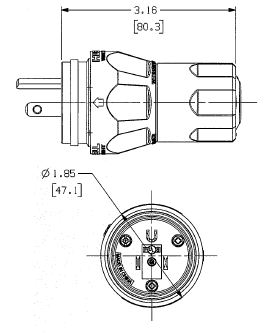

Straight Blade Devices, WatertightSeries, Elastomeric, Male Plug, 15A 250V, 2-Pole 3-Wire Grounding, 6-15P, Yellow

Technical Information

Amperage
15 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Contact Material
Nickel-Plated Brass
Cord Type
All Portable
Current
15 Amp
Grounding
Grounding
Material
Composite/Elastomeric
Mounting Type
Cord
NEMA
6-15R
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard Sized
Tc Connection
Screw Terminals
Type
Straight Blade
Voltage
250 Volt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585131221
Color
Yellow
Product Series
Watertight Devices
Product UPC
78358513122
Weight
0.2000 lb

Dimensions

Height
2 Inch
Length
9 Inch
Width
4.490 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying thewash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
