HCI HBL27W49 CONN, NEMA L7-20R, 20A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL27W49 | Codale Part # 4294212
$110.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Watertight Devices, Twist-Lock® Connector, 20A, 277V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-20R, Yellow

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Contact Material
Nickel Plated Brass
Current
20 Amp
Grade
Industrial/Commercial
Grounding
Grounding
Material
Elastomer
Mounting Type
Cord

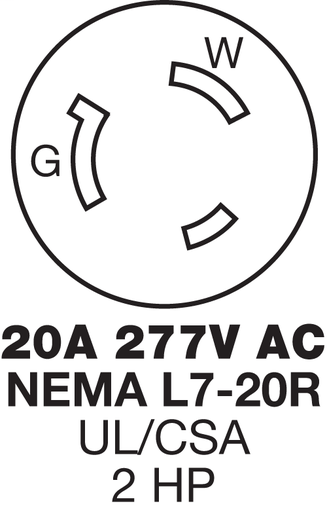

NEMA
L7-20R
Number of Conductors
3-Wire Grounding
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

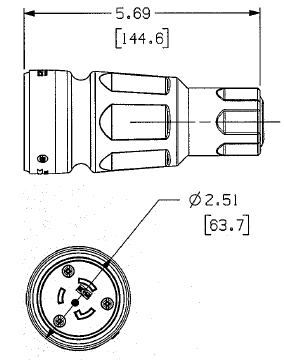

Size
2.51 in x 2.51 in x 5.69 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C without Impact, -25 to 75 degrees C with Impact
Type
Elastomeric
Voltage
277 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131498
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358513149
Weight
0.2500 lb

Dimensions

Height
5.69 Inch
Length
2.51 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
