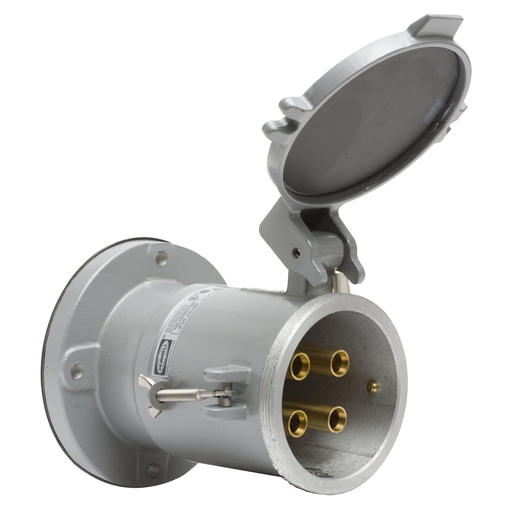

Hubbell M5200BS1R Marine PS, INS, INLT, 4P5W, 200A 600V, S1 REV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # M5200BS1R | Codale Part # 4295244
$2,933.36/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, International Pin and Sleeve Devices, Marine Grade, Female, Inlet, 200A 600V AC, 4-Pole 5- Wire Grounding, Terminal Screws, Gray

Technical Information

Amperage
200 Amp
Applications
High Ampacity Connections
Conductor Size
2-4/0 AWG
Current
200 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Size
Standard Sized
Standard
CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Style
Corrosion Resistant,Reversed Service
Tc Connection
Pressure Screw Terminals
Type
Single, Flanged, Reversed
Voltage
250 Volt
Wattage
120000 Watt
Wire Size
2-0000 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
IEC 309 Pin and Sleeve

General Product Info

12-Digit UPC
783585161853
Color
Black/Orange/Gray
Environmental Conditions
Watertight
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358516185
Weight
10.2500 lb

Dimensions

Height
7.8 Inch
Length
13.2 Inch
Width
9.3 in

Certifications and Compliance

Country of Origin
USA
Features
  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight
