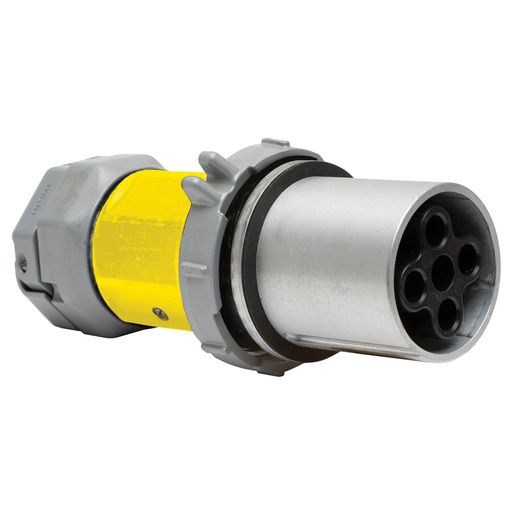

Hubbell M5200CS1R Marine PS, INS, CONN, 4P5W, 200A 600V, S1 REV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # M5200CS1R | Codale Part # 4295245
$5,478.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 200A 600V AC, 4- Pole 5-Wire Grounding Style 1, Reversed Service, Gray

Technical Information

Amperage
200 Amp
Applications
Marine Wiring Devices
Conductor Size
1 AWG-250 kcmil
Current
200 Amp
Grounding
Grounding
Material
Composite
Mounting Type
Cord
Number of Conductors
5-Wire Grounding
Number of Poles
4 Pole
Number of Wires
5 Wire
Size
Standard
Standard
CSA,CSA Spec. C22.2 No. 159,Type 4X,UL,UL 1010,UL 50,UL Standard 1682
Style
Corrosion Resistant,Reversed Service
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C
Type
Reversed Service, Standard
Voltage
250 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve

General Product Info

12-Digit UPC
783585161846
Color
Black/Gray
Environmental Conditions
Watertight
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358516184
Weight
11.4500 lb

Dimensions

Height
5.9 Inch
Length
15.8 Inch
Width
8.2 in

Certifications and Compliance

Country of Origin
USA
Features
  • Locking ring provides UL Type 4X watertight, dust-tight seal
  • Catalog number and rating visible while in use
  • All-Brass sleeve contacts provide reliable electrical contact
  • Reversed Service
