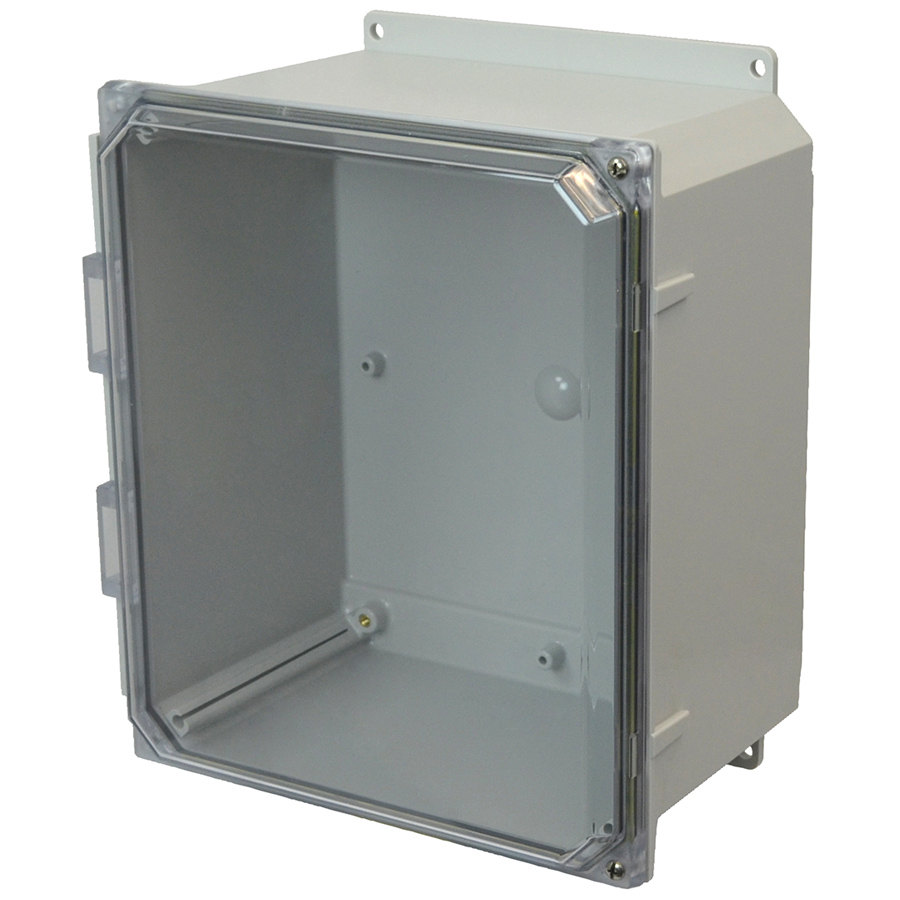

Product image for ALLIED AMP1206CCHF 12X10X6 PC ENCL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

ALLIED AMP1206CCHF 12X10X6 PC ENCL

Manufacturer: Allied Moulded Products | Catalog # AMP1206CCHF | Codale Part # 4295692
$139.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet MDM Safety Data Sheet
Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Hinged Type: screw down, flush-aesthetically pleasing and clear cover design with FIP formed-in-place polyurethane gasket Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:Polycarbonate - thermoplastic Size:A=11.92", B=10.15", C=5.98" plus .87" raised cover, usable depth=6.18" Color:RAL 7035 - Gray with clear cover Mounting:Nonmetal flange fastened to back side brass insert

Technical Information

Applications
Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Insulation Type
Non-Conductive,Non-Metallic
Material
Polycarbonate
Mounting Type
Nonmetal Flange Fastened To Back Side Brass Insert
Size
A=11.92", B=10.15", C=5.98" plus .87" raised cover, usable depth=6.18"
Standard
UL 508A - Industrial Control Panels
Type
NEMA 4X Type Nonmetallic Enclosure

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
POLYLINE

General Product Info

12-Digit UPC
085339993339
Color
Colorless/Light Gray
Construction
Injection molded
Product UPC
08533999333
Weight
5.0000 lb

Dimensions

Depth
5.94 Inch
Height
11.93 Inch
Width
10.15 in

Certifications and Compliance

Buy American Compliant
Y
  • Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.
  • AM1206H
  • AMP1206CCLF
  • AMHS075
  • HFPP120
  • PL120
  • AMPOLEMNT10
  • AMU1206CCHF
  • AMP1206HF
  • PLA120
  • PLPVC120
Additional Materials
  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • Polyurethane (FIP) Formed-In-Place gasket system
  • Polycarbonate mounting brackets
  • Brass inserts
  • Plated carbon steel internal hardware
  • Complies with:
  • UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175
  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive
  • CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
  • Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
