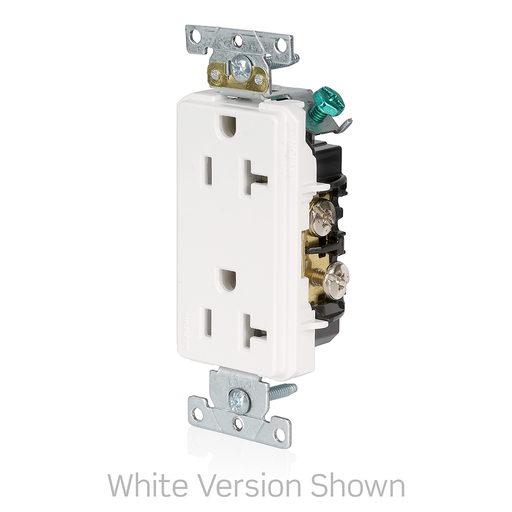

Image thumbnail 2

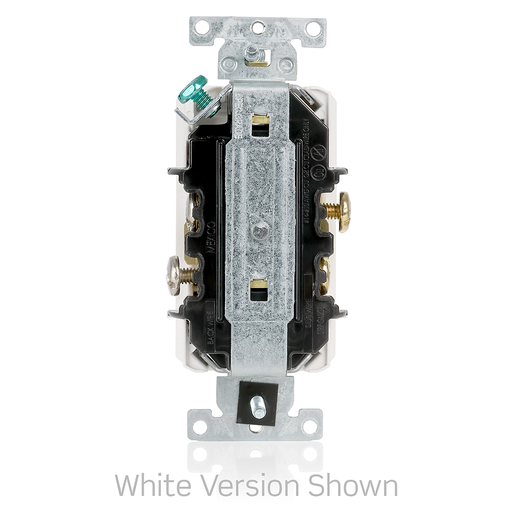

Image thumbnail 3

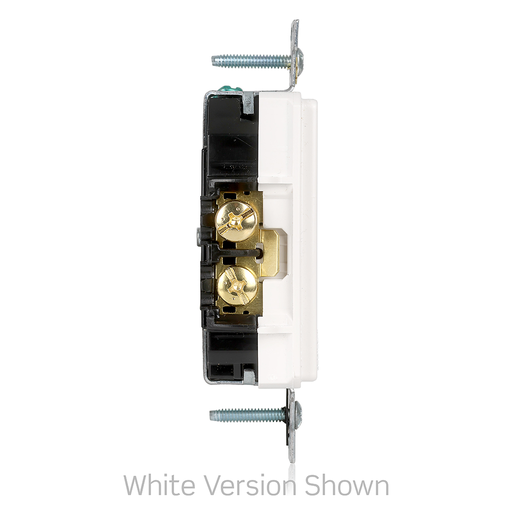

Image thumbnail 4
Image thumbnail 5
Email

Leviton 16342-I 125 Volt 20 Amp 2-Pole 3-Wire NEMA 5-20R 1 Hp Ivory Thermoplastic Nylon Straight Blade Duplex Receptacle

Manufacturer: Leviton | Catalog # 16342-I | Codale Part # 42968
$13.18/ea
ea
Log in or register to view your price, purchase history, and more!
489 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Ivory

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Thermoplastic Nylon
Conductor Size
14-10 AWG
Connection Type
Screw
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic, Polyester Face
Mounting Type
Wall Box, Flush, Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
Tc Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Side Wire
Type
Decorator, Straight, 3-Speed
Voltage
125 Volt
Wattage
1 hp
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477788257
Color
Ivory
Environmental Conditions
UL 94 V-2 Flammability
Product UPC
07847778825
Weight
0.1530 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Patents
  • MX321216
  • US8684771
