Burndy T10516 Uninsulated Ring Terminal For 12 - 10 AWG

Manufacturer: Hubbell-Burndy | Catalog # T10516 | Codale Part # 4297386
$138.88/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Copper Compression Terminal, Ring Tongue, 12-10 AWG, 5/16" Stud, Long Barrel, Tin Plated.

Technical Information

Applications
For Control Wiring And Other Standard Duty Applications
Cable Size
12 - 10 AWG
Conductor Size
10 AWG
Connection Type
Ring Terminal
Material
Copper
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.3125 in
Type
Ring Tongue

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810722350
Product UPC
781810722350
Weight
0.0050 lb

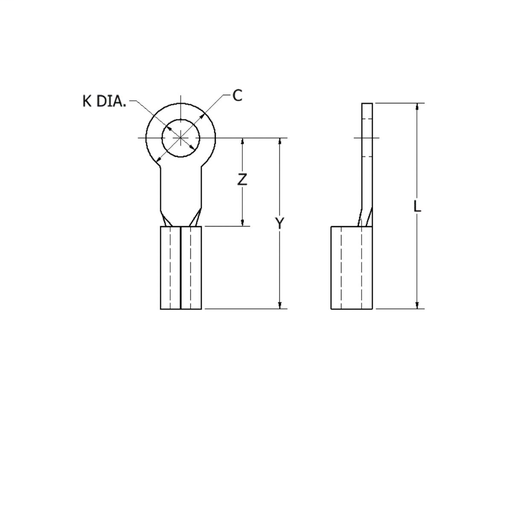

Dimensions

Height
0.26 Inch
Hole Size
0.33 in
Length
1.02 Inch
Overall Length
26 mm
Width
0.53 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features
  • Constructed of pure electrolytic copper for maximum conductivity, low resistance and ductility for excellent crimp forming properties
  • Long brazed seam barrel and deep V groove inner serrations provide optimal conductity, reliability and holding power after crimping
  • Wire range is clearly marked on terminal for easy identification
  • Long neck terminal permits easy bending and stacking of several terminals on a common stud
